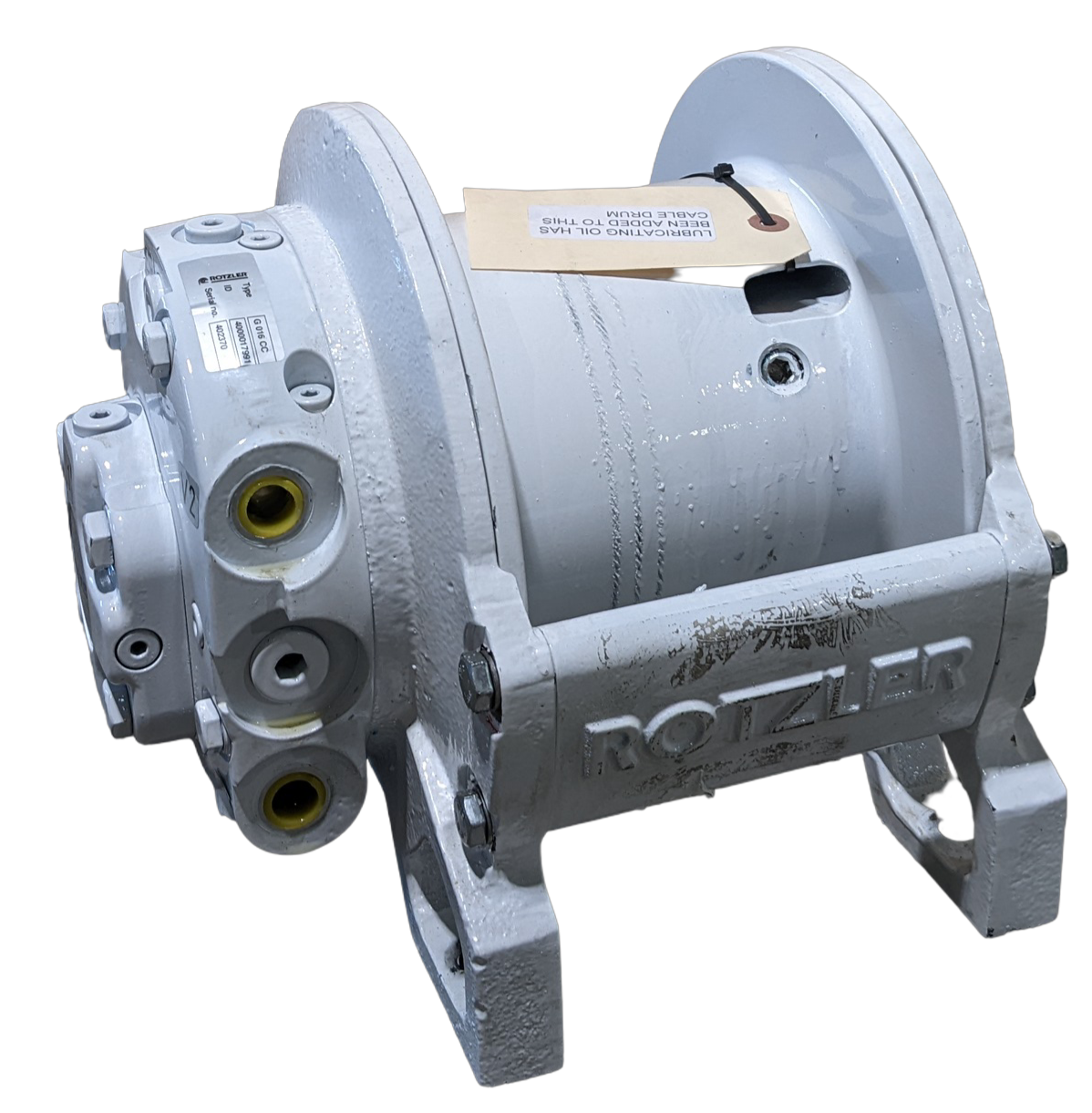

Rotzler Ti2 hydraulic winch

Winches Rotzler are assembled in Vancouver, Canada since 1995. Capital Winch sells the Titan Ti series for lifting applications, such as mobile cranes.

The model Titan Ti2 has a capacity of 5900 lb to the first layer and a speed of 139 feet per minute. The direction of rotation is anti-clockwise.

Characteristics

• First layer capacity: 5900 lbs.
• Capacity at last layer: 4400 lbs.
• Winding capacity: 155' of 7/16'' cable
• Vitesse: 138 ppm
• Maximum oil flow: 23 gpm
• Maximum hydraulic pressure: 3100 psi
• Hydraulic brake with integrated safety
• Meets ASME B30.5, Mobile and locomotive crane
• Ratio D/d = 17
• Weight: 152 lbs.
• 31cc hydraulic motor

Note: cable sold separately

To download the technical sheet, click here
