PROJECT - MARITIME

Discover our achievements in the maritime sector

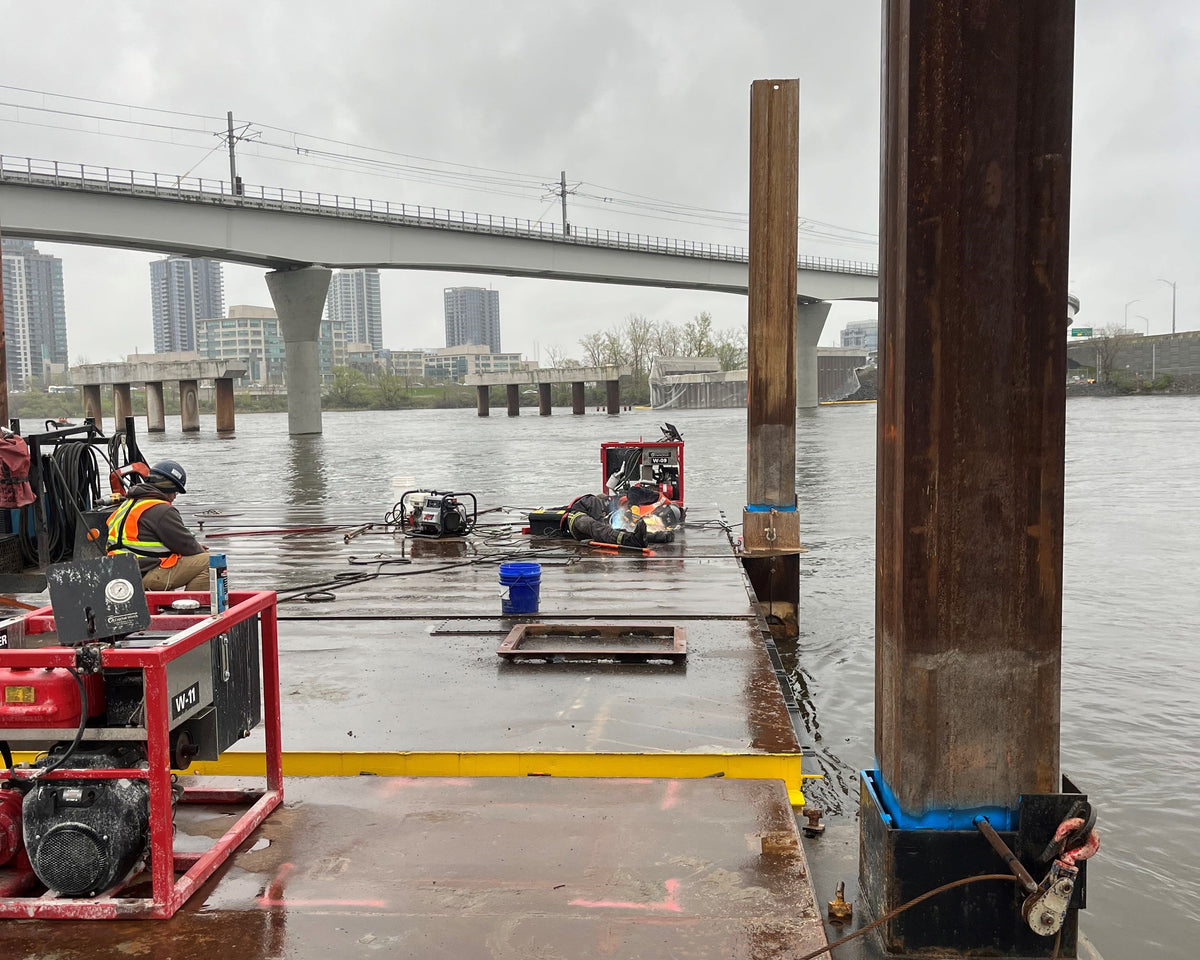

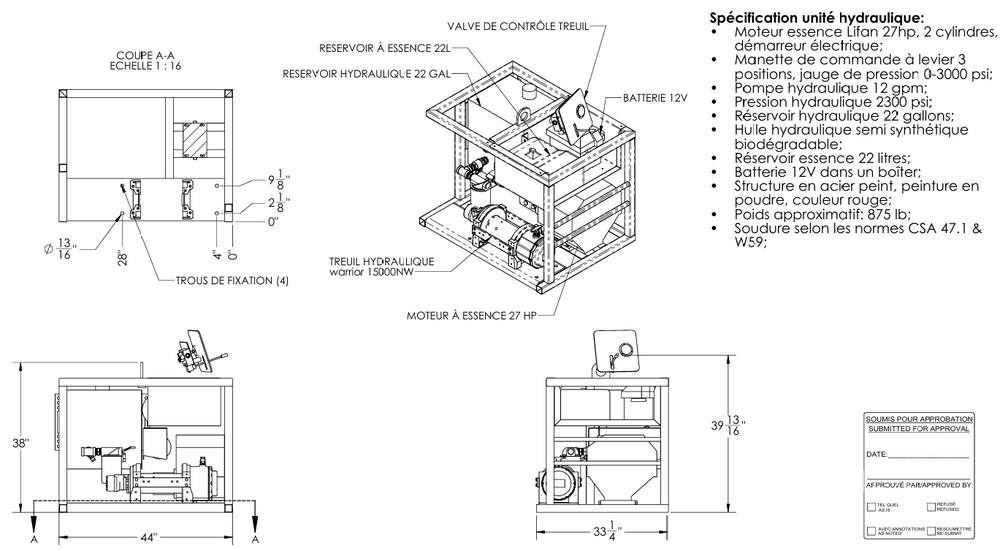

Barge Winch

Customer :
Marine Emergency Environment, Montreal (QC)

Objective :

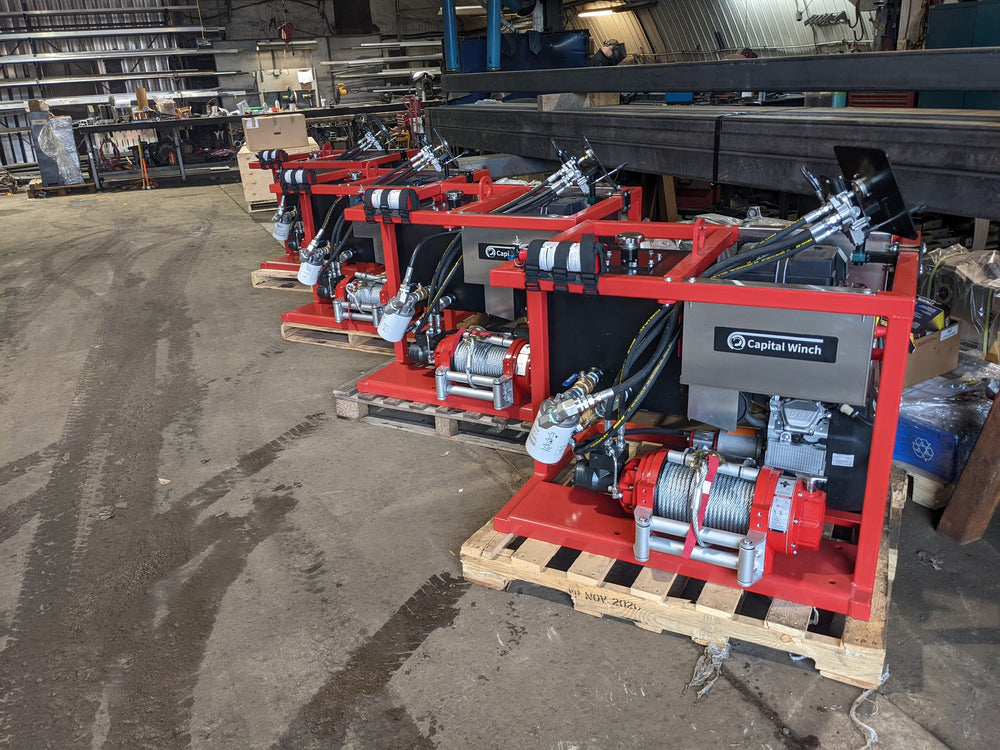

Supply 4 hydraulic winches with petrol hydraulic power unit for lifting equipment underwater .

Specifications:

  • Capacity: 15,000 lb
  • Gasoline-powered hydraulic power unit: 27 HP, 12 GPM, 2300 PSI
  • Steel structure with lifting ring

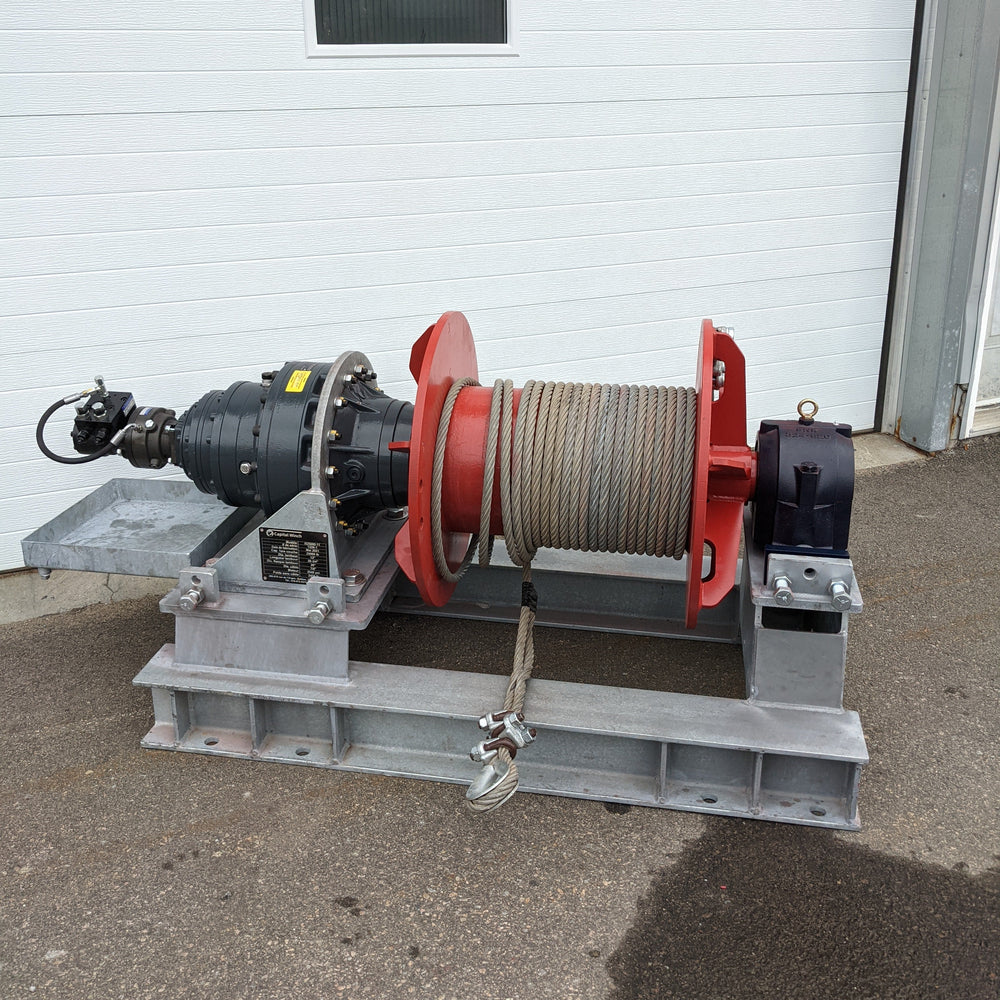

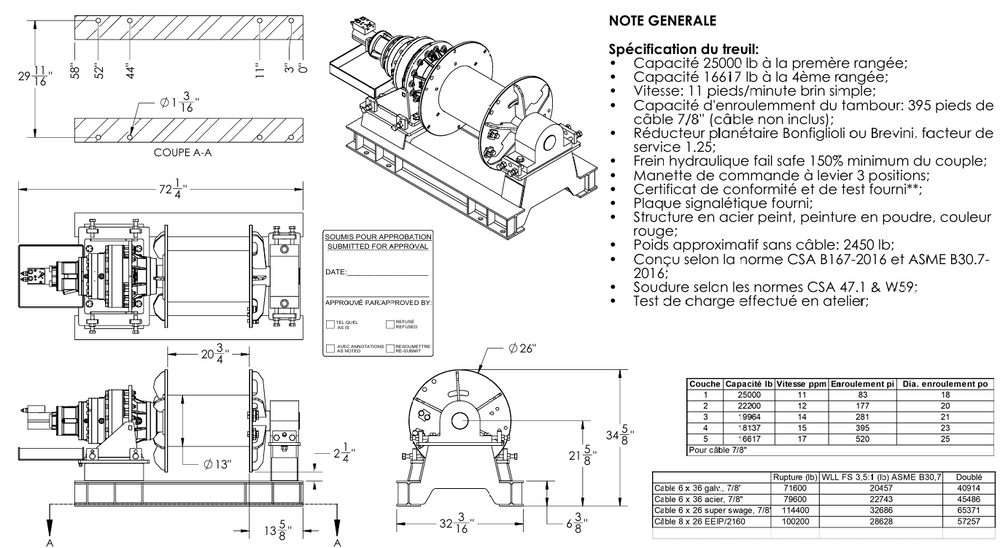

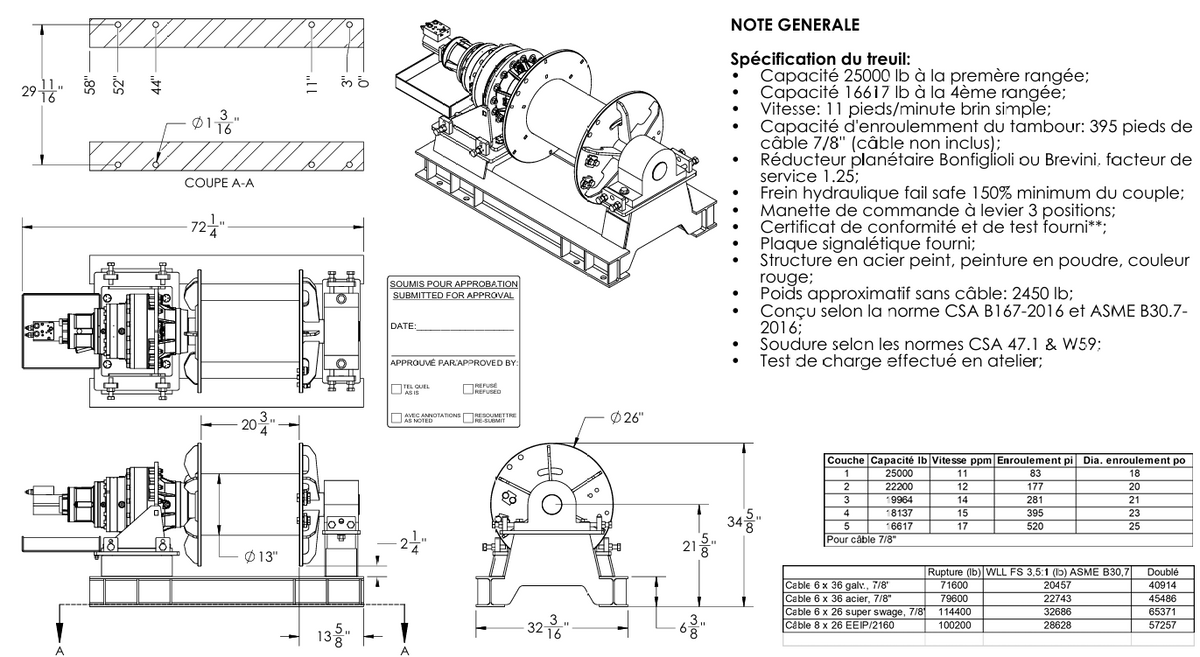

25,000 lb Hydraulic Winch

Customer :
Ocean Group, North Shore (QC)
Company specializing in port towing, shipbuilding and dredging of waterways .

Objective :

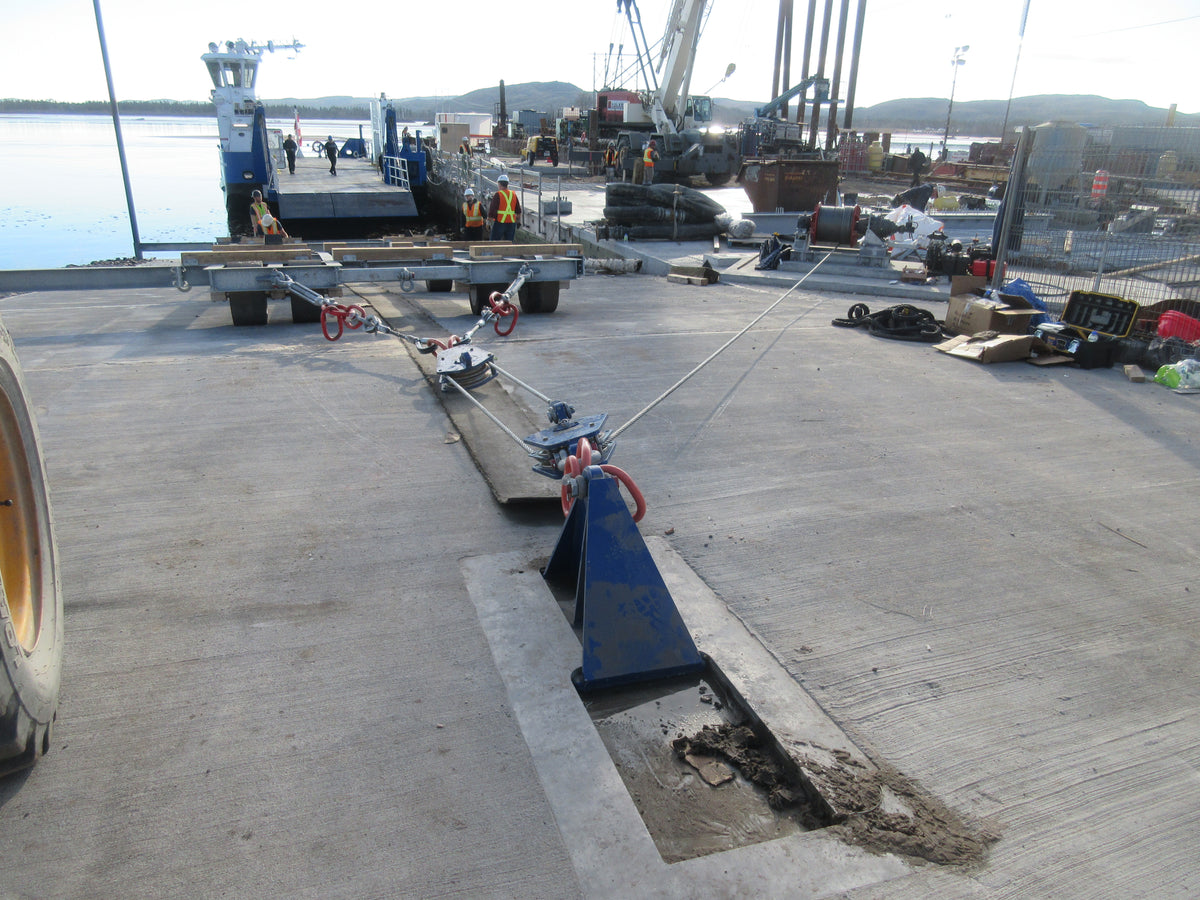

To supply a hydraulic winch with a petrol-powered unit to pull a ferry to the shore . Using a pulley block system , the winch's pulling capacity is multiplied by 4 , allowing it to reach 40 tonnes .

Specifications:

  • First layer capacity: 25,000 lb
  • 4th layer capacity: 18,137 lb
  • Frequency: 30 cycles per minute
  • Drum capacity: 520 feet of 7/8" cable
