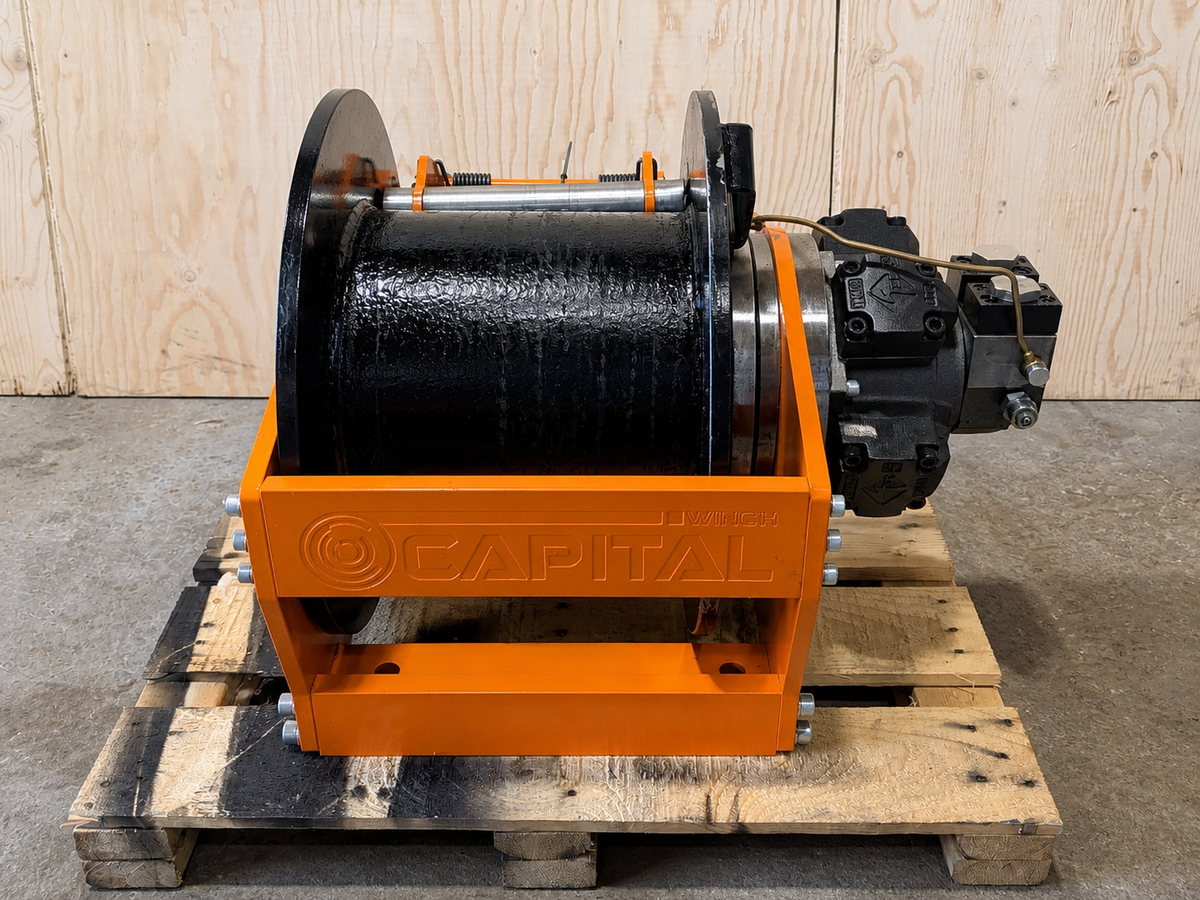

HL1-6T Industrial Hydraulic Winch – Capital Winch

A heavy-duty hydraulic winch engineered for demanding industrial, marine and material-handling applications.

The Capital Winch HL1-6T delivers up to 13,200 lb of first-layer line pull. Its rugged steel construction, hydraulic drive and integrated safety brake make it a dependable solution for demanding work environments.

At 32 gpm, the winch provides a first-layer line speed of 82 ft/min and reaches up to 121 ft/min on the upper layers. The drum accommodates up to 353 ft of 3/4-in wire rope or 406 ft of 5/8-in wire rope.

KEY FEATURES
• Maximum first-layer line pull: 13,200 lb at 2,320 psi
• Rated flow: 32 gpm
• Line speed: 82 ft/min first layer; up to 121 ft/min upper layers
• Wire-rope capacity: 353 ft of 3/4-in or 406 ft of 5/8-in rope
• Integrated hydraulic safety brake
• Minimum brake torque: 125% of required torque
• Safety factor: 5:1
• Painted steel construction with orange powder-coated finish
• Wire rope not included

Available by quotation. Hydraulic configuration, wire rope, controls and installation can be matched to the customer’s application.
