Description

Winches Rotzler are assembled in Vancouver, Canada since 1995. Capital Winch sells the Titan Ti series for lifting applications, such as mobile cranes.

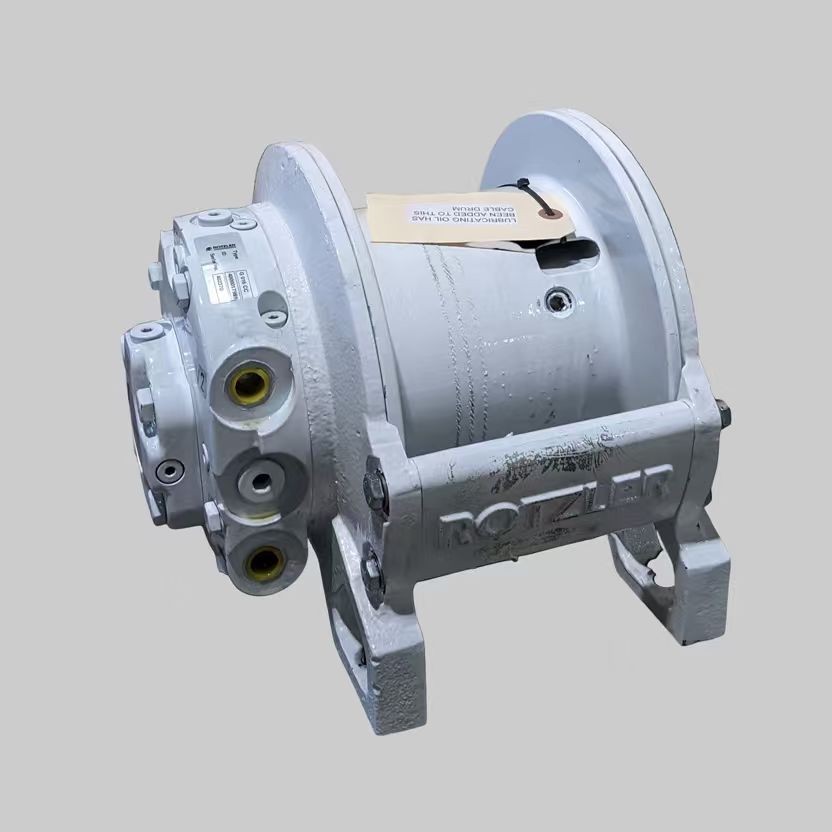

The model Titan Ti2 has a capacity of 5900 lb to the first layer and a speed of 139 feet per minute. The direction of rotation is anti-clockwise.

Characteristics

  • First layer capacity: 5900 lbs.
  • Capacity at last layer: 4400 lbs.
  • Winding capacity: 155' of 7/16'' cable
  • Vitesse: 138 ppm
  • Maximum oil flow: 23 gpm
  • Maximum hydraulic pressure: 3100 psi
  • Hydraulic brake with integrated safety
  • Meets ASME B30.5, Mobile and locomotive crane
  • Ratio D/d = 17
  • Weight: 152 lbs.
  • 31cc hydraulic motor

Note: cable sold separately

To download the technical sheet, click here
