44,000 lb Industrial Hydraulic Winch HWE200 – Capital Winch

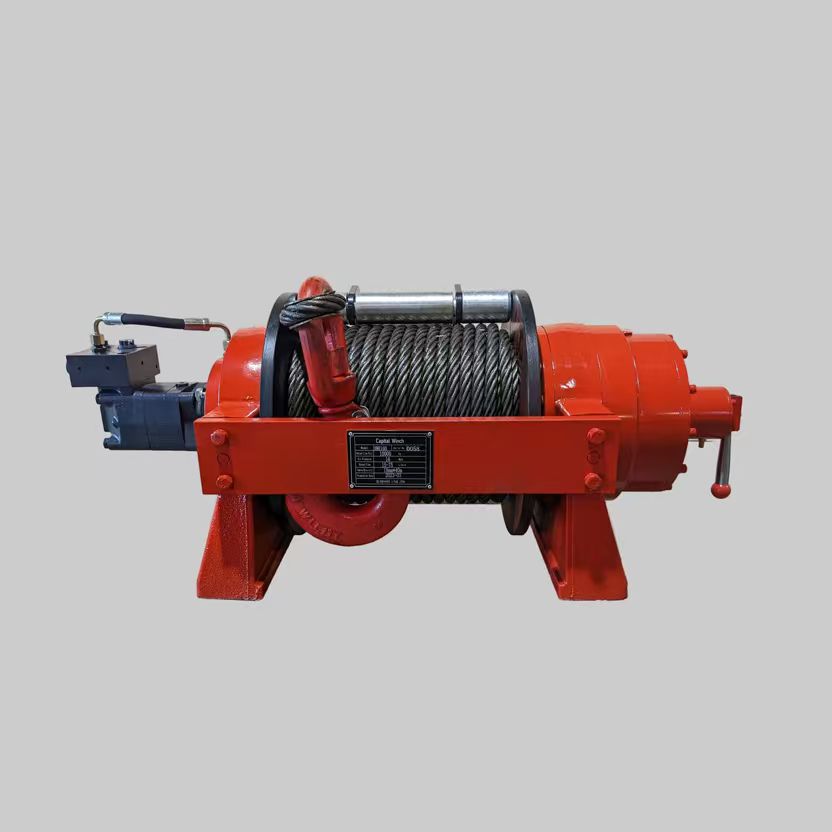

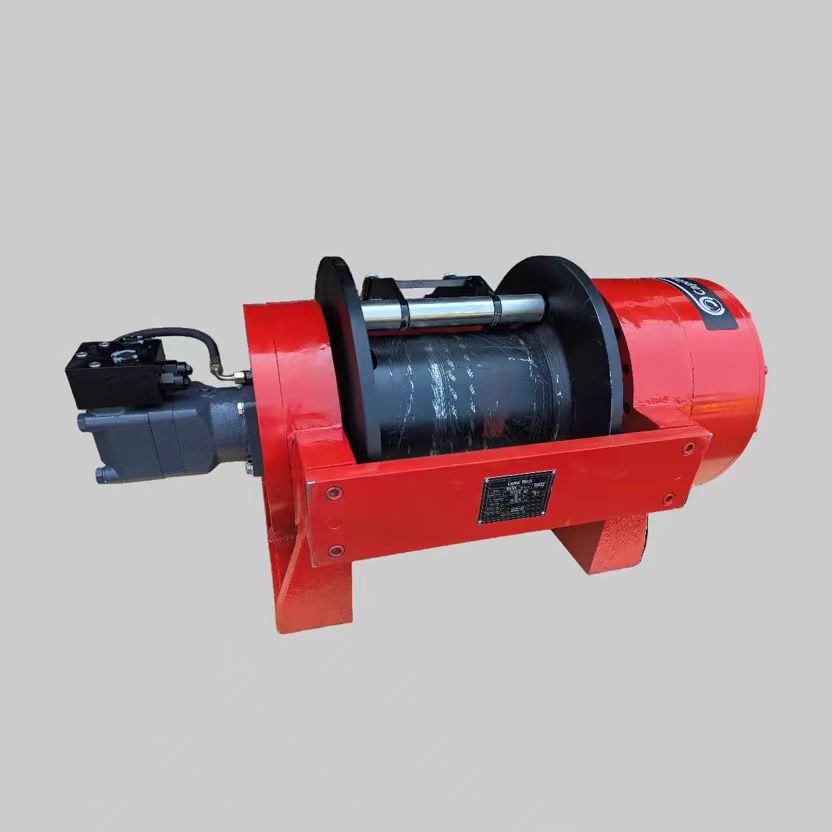

HWE Hydraulic Winch – 44,000 lb Capacity

The Capital Winch HWE series hydraulic winch – 44,000 lb capacity offers excellent value for demanding commercial and industrial applications. Its compact and robust design delivers reliable performance on equipment requiring high pulling capacity.

Designed for intensive work environments, HWE winches feature an integrated hydraulic safety brake, a pneumatic drum freespool and heavy-duty construction for industrial operations.

With their high pulling capacity and reliability, they are well suited for heavy-duty tow trucks, industrial equipment, marine applications and heavy machinery.

Technical Specifications

Performance

• First layer capacity: 44,000 lb
• Last layer capacity (full drum): 26,543 lb
• Line speed: 23 ft/min

Hydraulic System

• Integrated hydraulic safety brake
• Maximum oil flow: 32 GPM
• Maximum hydraulic pressure: 2900 PSI
• Hydraulic shock valve

Operation

• Pneumatic drum freespool
• Manual lever available as an option

Construction

• Cable pressure roller
• D/d ratio: 10:1
• Required power: 47 HP

Standards and Safety

• Compliant with: SAE-J706 and GJB82-86
• Cable safety factor: 2:1

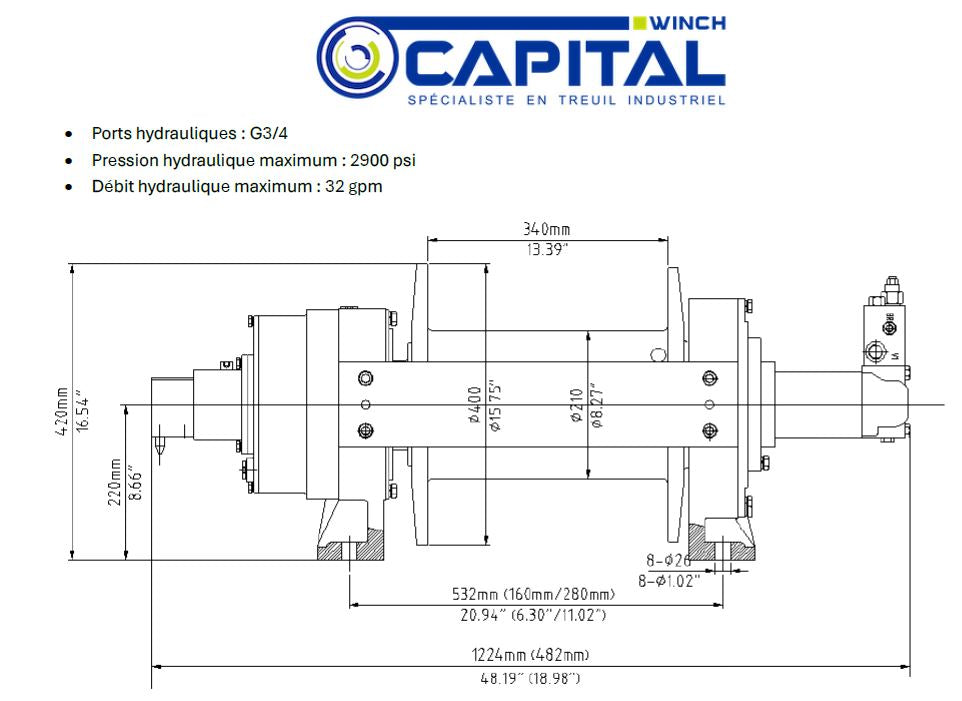

Dimensions and Weight

• Weight: 1111 lb

Cable Included

• Diameter: 1.02" (26 mm)
• Length: 160 ft
• Hook included

Typical Applications

• Heavy-duty tow trucks
• Industrial machinery
• Marine equipment
• High-capacity pulling applications

Why Choose Capital Winch

Capital Winch is a Canadian specialist in industrial hydraulic winches and high-capacity pulling solutions. Our team helps match the winch to the required load, hydraulic flow, pressure and duty cycle.

• Specialized winch expertise
• Technical support for selecting the right winch
• Replacement parts available
• Tested and approved products
• After-sales service in Canada
