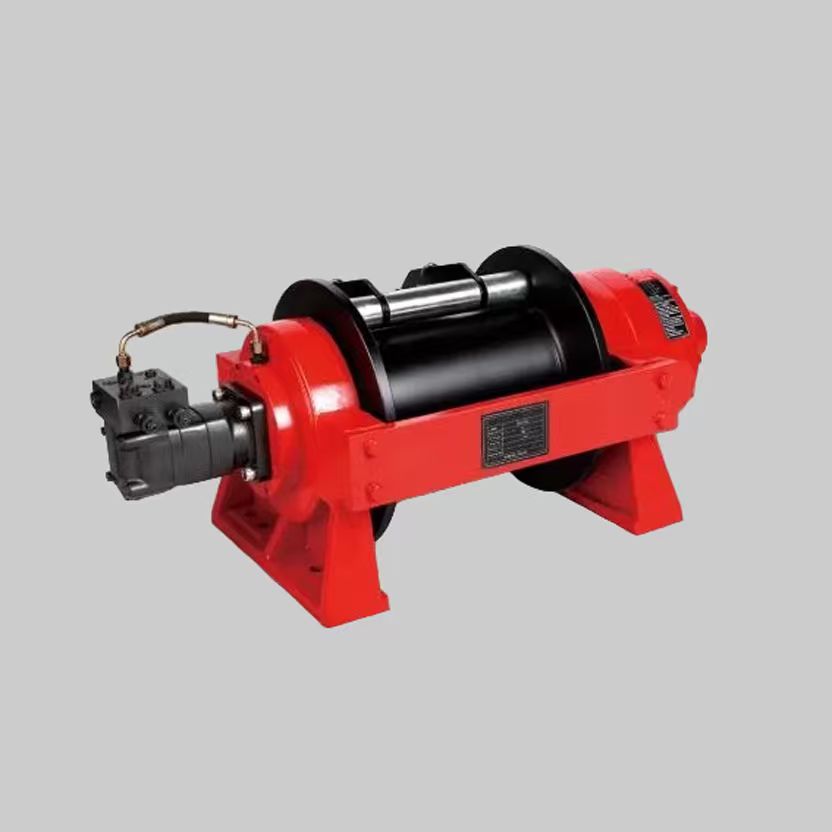

HWE Hydraulic Winch – 30,000 lb Capacity

The Capital Winch HWE series hydraulic winch – 30,000 lb capacity offers excellent value for demanding commercial and industrial applications. Its compact and robust design ensures reliable performance in intensive work environments requiring high pulling capacity.

This model features a spring-applied, hydraulically released multi-disc brake, providing reliable control during pulling operations. Its durable construction and industrial-grade components make it well suited for tow trucks, industrial equipment, marine applications and heavy machinery.

Technical Specifications

Performance

• First layer capacity: 30,000 lb
• Last layer capacity: 18,500 lb
• Line speed: 17 ft/min

Brake System

• Spring-applied, hydraulically released multi-disc brake

Hydraulic System

• Maximum oil flow: 20 GPM
• Maximum hydraulic pressure: 2465 PSI
• Hydraulic shock valve

Operation

• Manual or pneumatic drum freespool

Construction

• Cable pressure roller
• D/d ratio: 11.5
• Required power: 23 HP

Standards and Safety

• Compliant with: SAE-J706 and GJB82-86
• Cable safety factor: 2:1

Dimensions and Weight

• Weight: 597 lb

Cable Included

• Diameter: 18 mm
• Length: 160 ft
• Hook included

Typical Applications

• Tow trucks
• Industrial machinery
• Marine applications
• Heavy-duty pulling equipment

Why Choose Capital Winch

Capital Winch is a Canadian specialist in industrial hydraulic winches and high-capacity pulling solutions. Our team helps match the winch to the required load, hydraulic flow, pressure and duty cycle.

• Specialized winch expertise
• Technical support for selecting the right winch
• Replacement parts available
• Tested and approved products
• After-sales service in Canada
