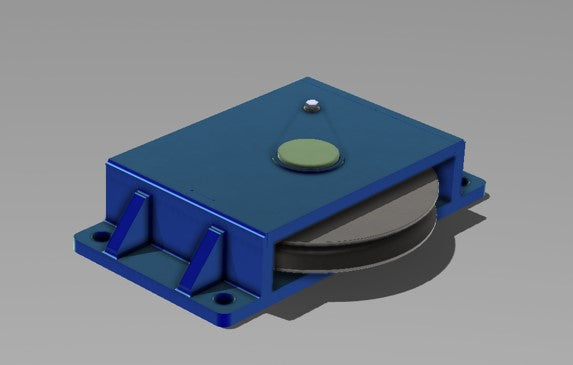

PH1 series horizontal pulley

The PH1 series pulleys are mounted on ball/roller bearings for greater efficiency than a bushing mounted model. The frame is made of heavy duty steel and finished with a blue powder coat paint. They can be used to divert the cable path or to double the pulling force of the winch.

Application type:

• Deflect the cable for moving the trolley in the factory.
• Mine conveyor.
• Stage/theatre equipment.
• Opening of foundry furnace door.
