Barge operations
Winch systems configured for lifting and handling equipment from working barges.

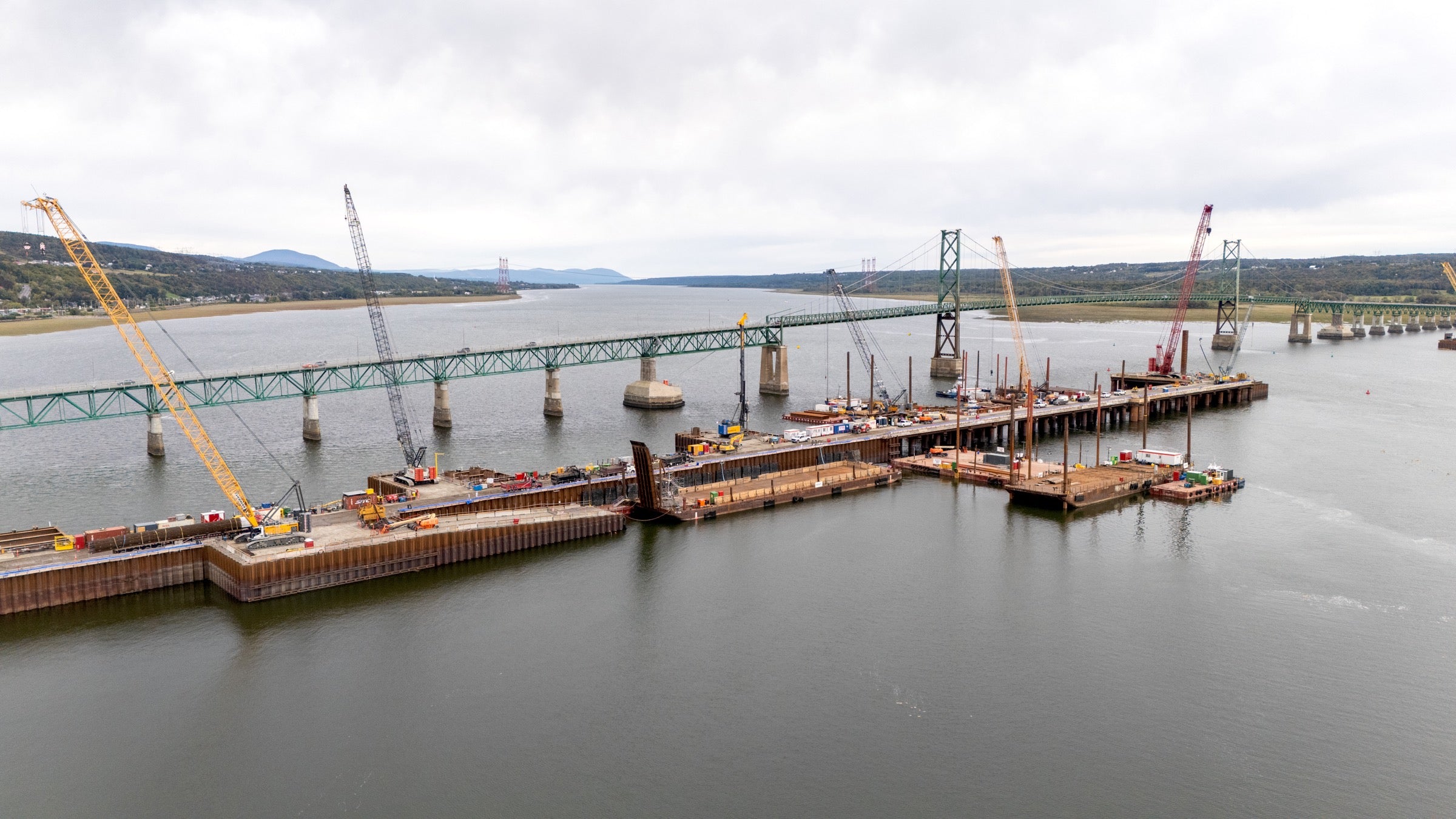

Marine & waterway operations
Winch systems engineered for work on the water.
Hydraulic winch systems developed for barges, underwater equipment handling, vessel pulling and demanding marine operations.
Engineering for marine operations
Load, controls and deployment considered as one system.
Each solution is developed around the required pull, cable capacity, power source, structure, handling and real operating environment.
Vessel pulling
High-capacity solutions developed around the vessel, rigging arrangement and required line pull.
Field deployment
Power units, lifting points, controls and transport considered for practical use at the site.
Verified marine projects
Three real systems developed for different operations on the water.
01

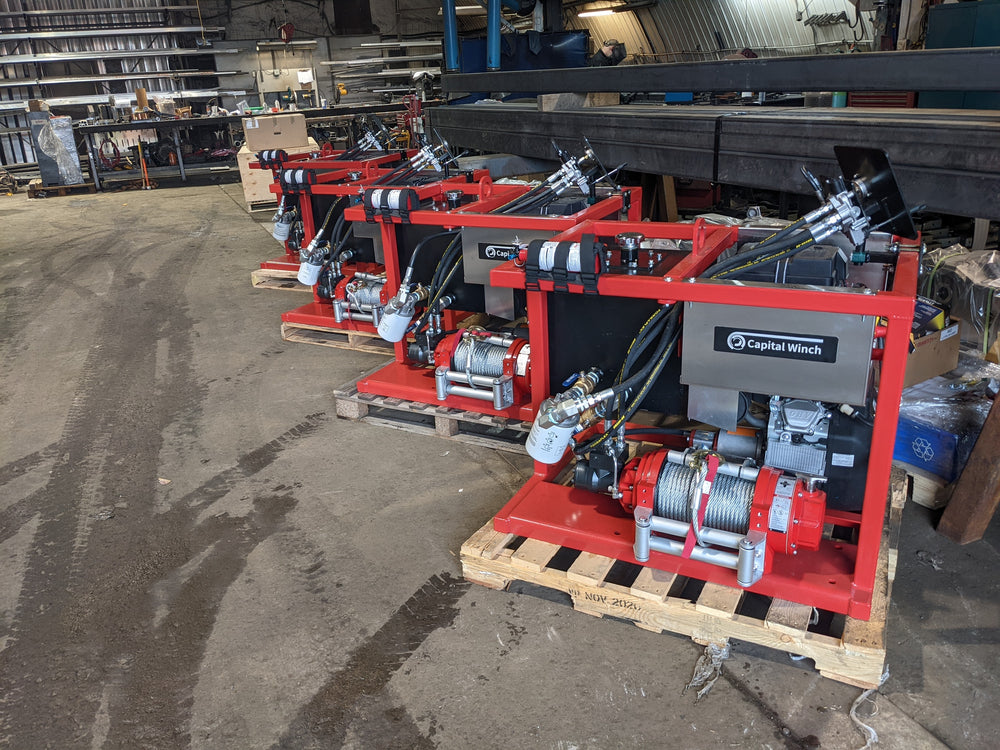

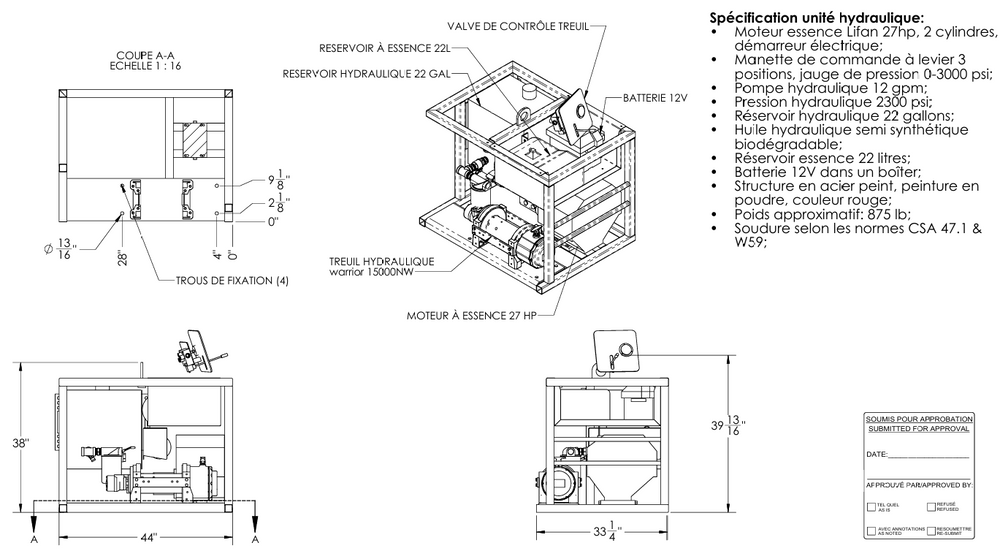

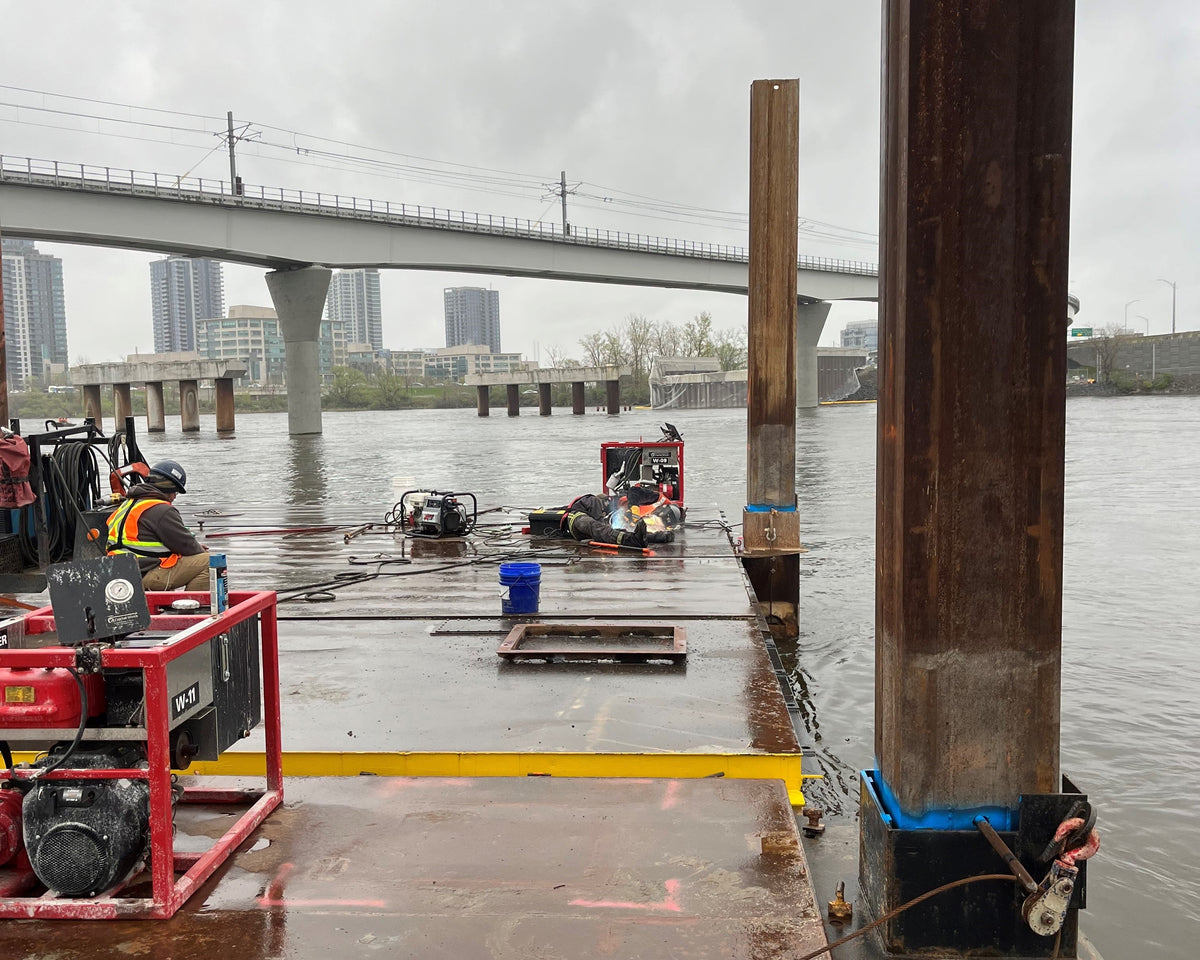

Barge winches for underwater equipment
Key specifications
- 15,000 lb capacity
- 27 hp gasoline hydraulic power unit
- 12 GPM at 2,300 PSI
- Steel structure with lifting ring
02

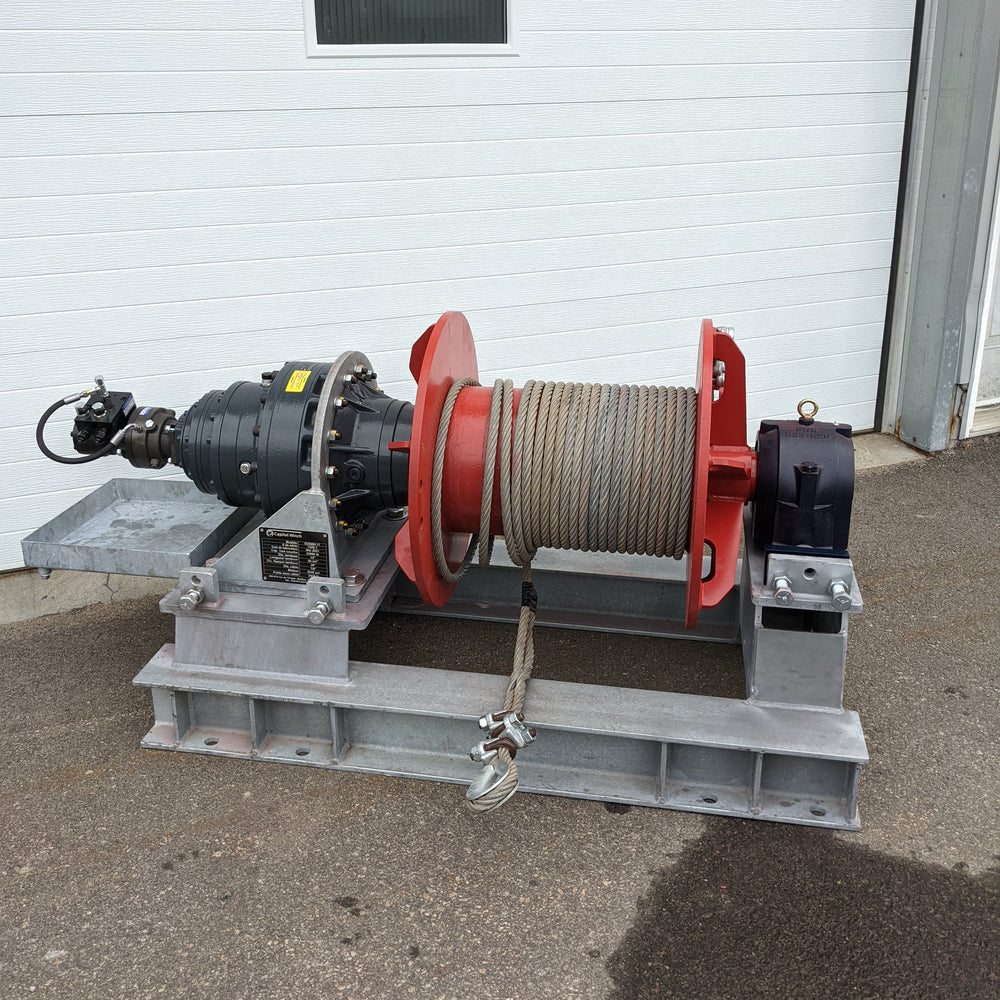

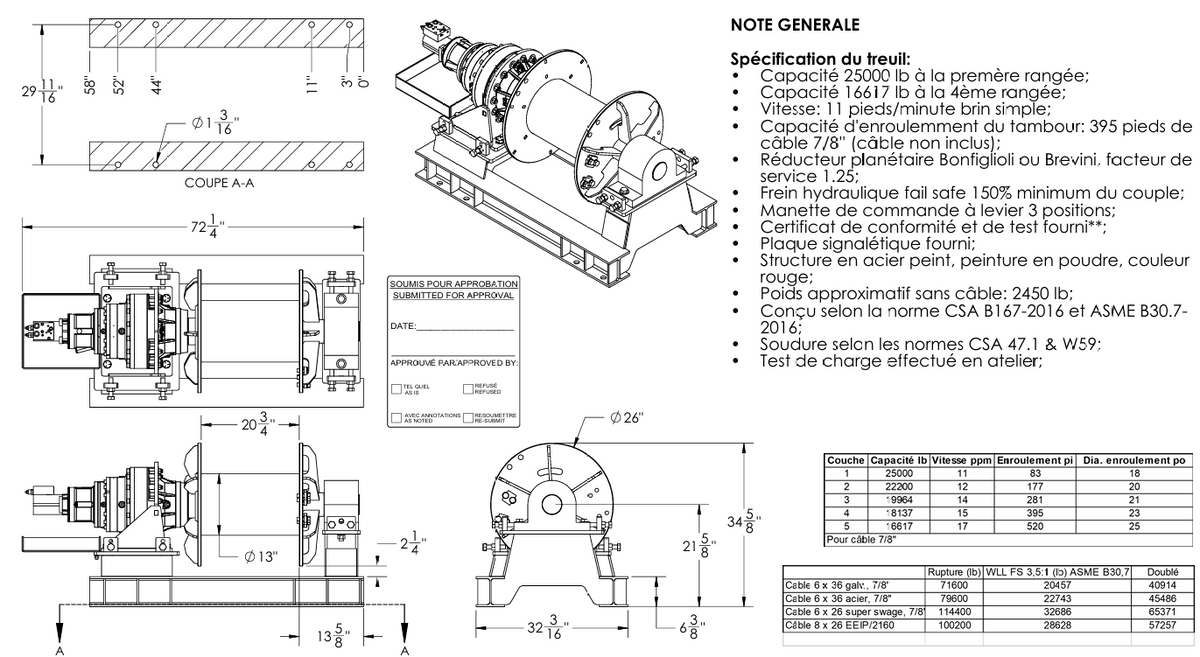

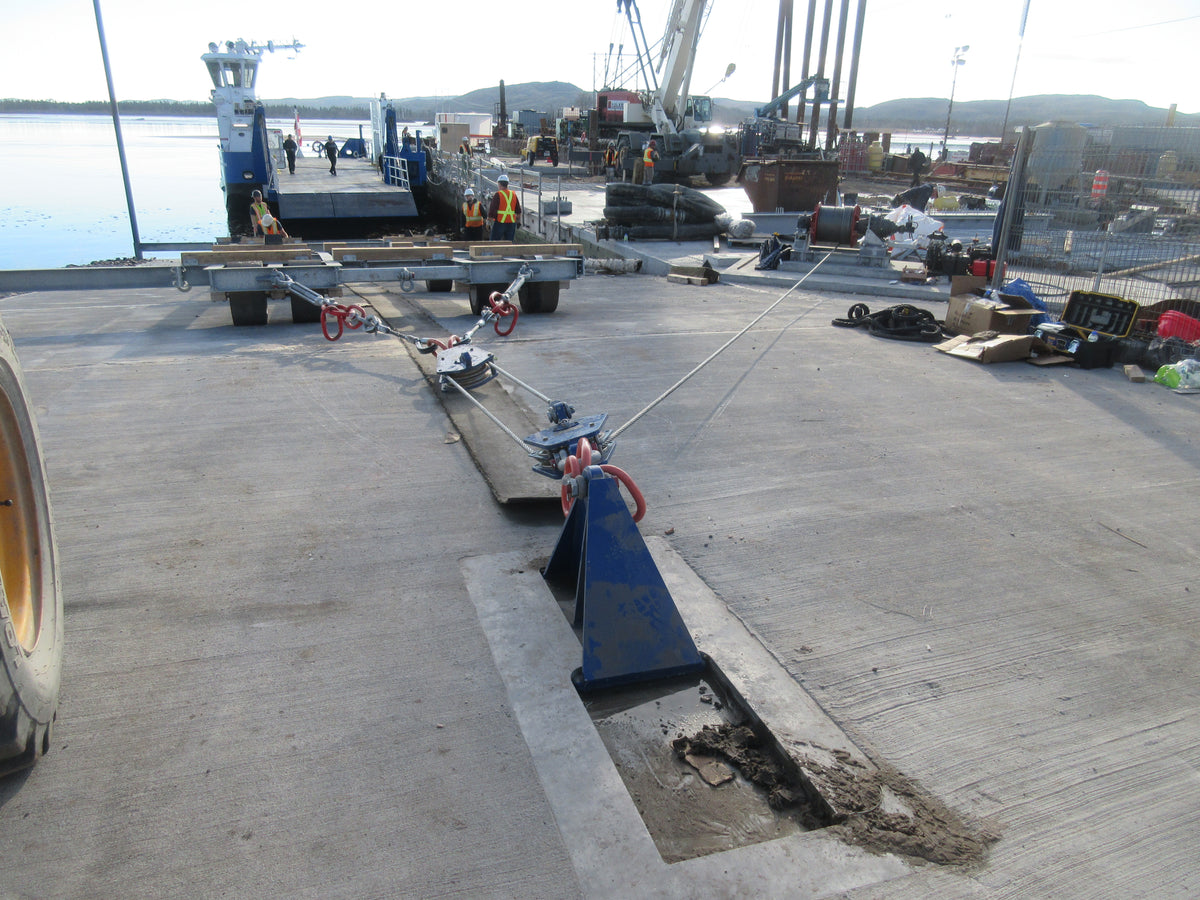

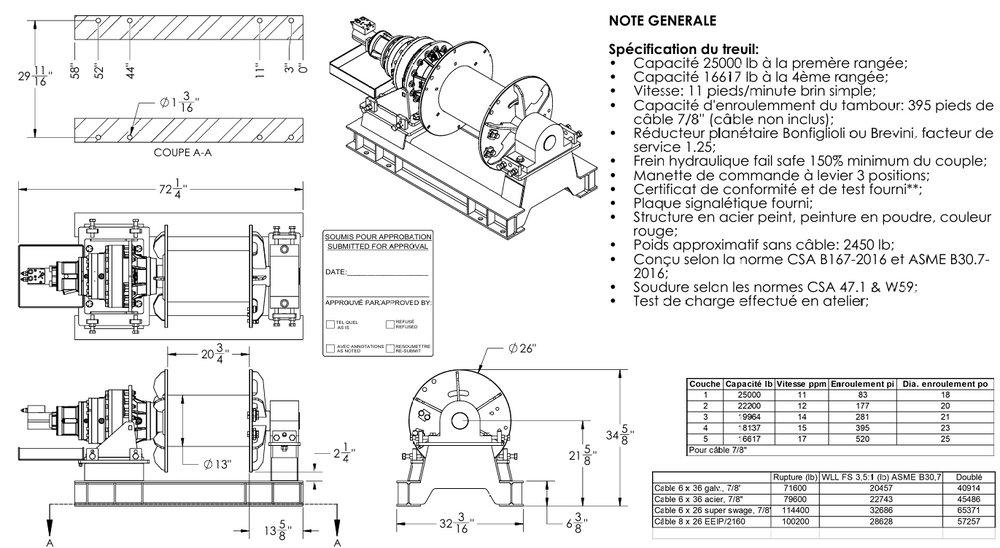

Hydraulic winch for ferry pulling
Key specifications
- 25,000 lb capacity on the first layer
- 18,137 lb capacity on the fourth layer
- Drum capacity: 520 ft of 7/8 in cable
03

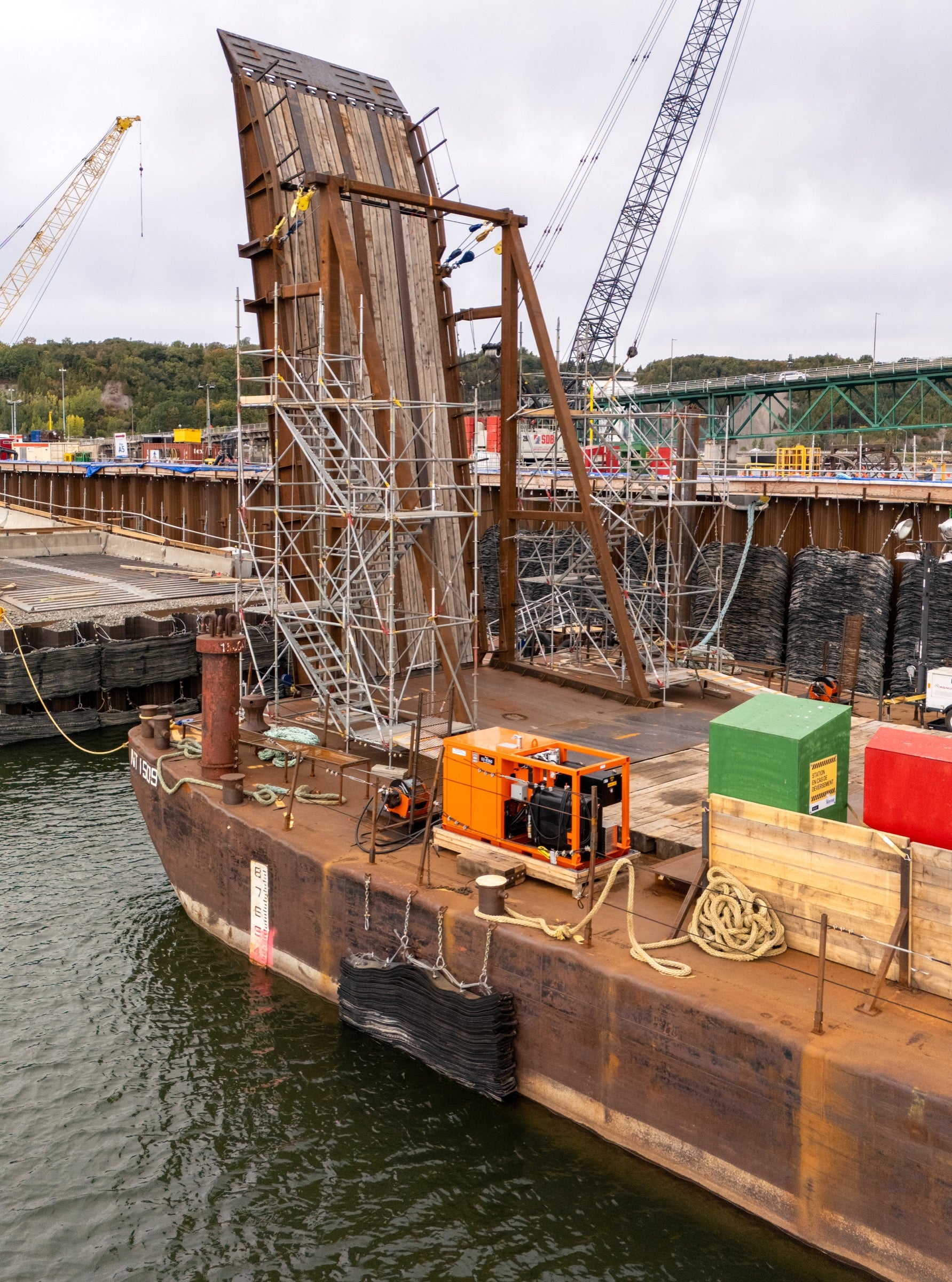

Barge spud and positioning winch system
Key specifications
- Four 30-ton hydraulic winches
- One hydraulic power unit
- Three winches for anchoring spuds
- One winch for barge pulling and positioning
Capital Winch · Québec
Engineering and fabrication from Québec.
Large custom projects are generally developed, engineered and manufactured by the Capital Winch team in Québec.
- Application review
- Custom engineering
- Fabrication and technical support
Planning a marine application?
Start with the operating requirements.
Share the required pull, cable length, duty cycle, power source, controls, rigging and site conditions with our team.
