Gate and stoplog lifting
Winch systems configured for controlled lifting at dams and water-control structures.
ENERGY & HYDRAULIC INFRASTRUCTURE
Winch systems engineered for energy infrastructure.
From application review to fabrication, we develop winch solutions for dams, intake structures, trash racks and gate-lifting equipment.
BUILT AROUND THE APPLICATION
A practical approach to demanding sites.
Each system is developed around the operating load, travel, environment, controls and installation constraints.
Trash-rack operation
Drum, cable and protection features matched to continuous or recurring cleaning cycles.
Site integration
Structures, mobility, controls and maintenance access considered as one working system.
VERIFIED ENERGY PROJECTS
Two real systems designed for different operating needs.
01

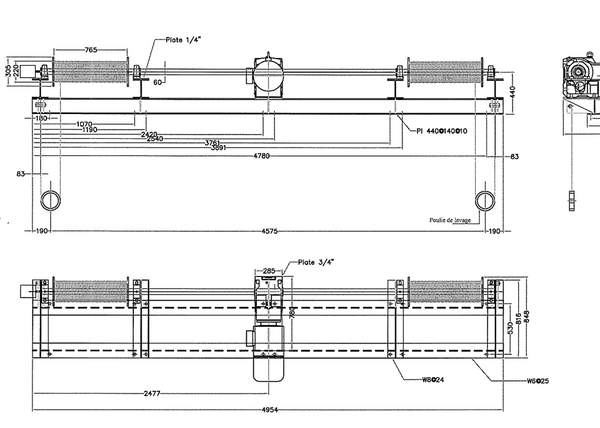

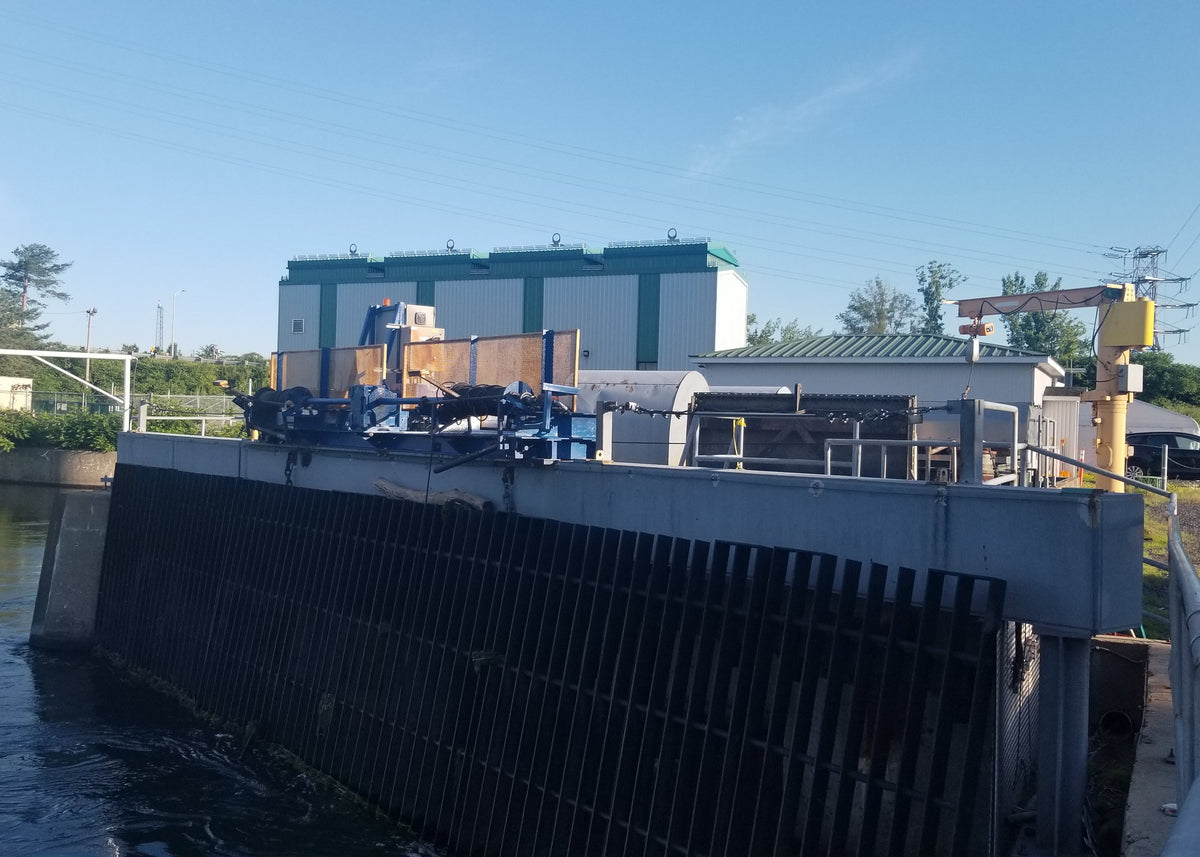

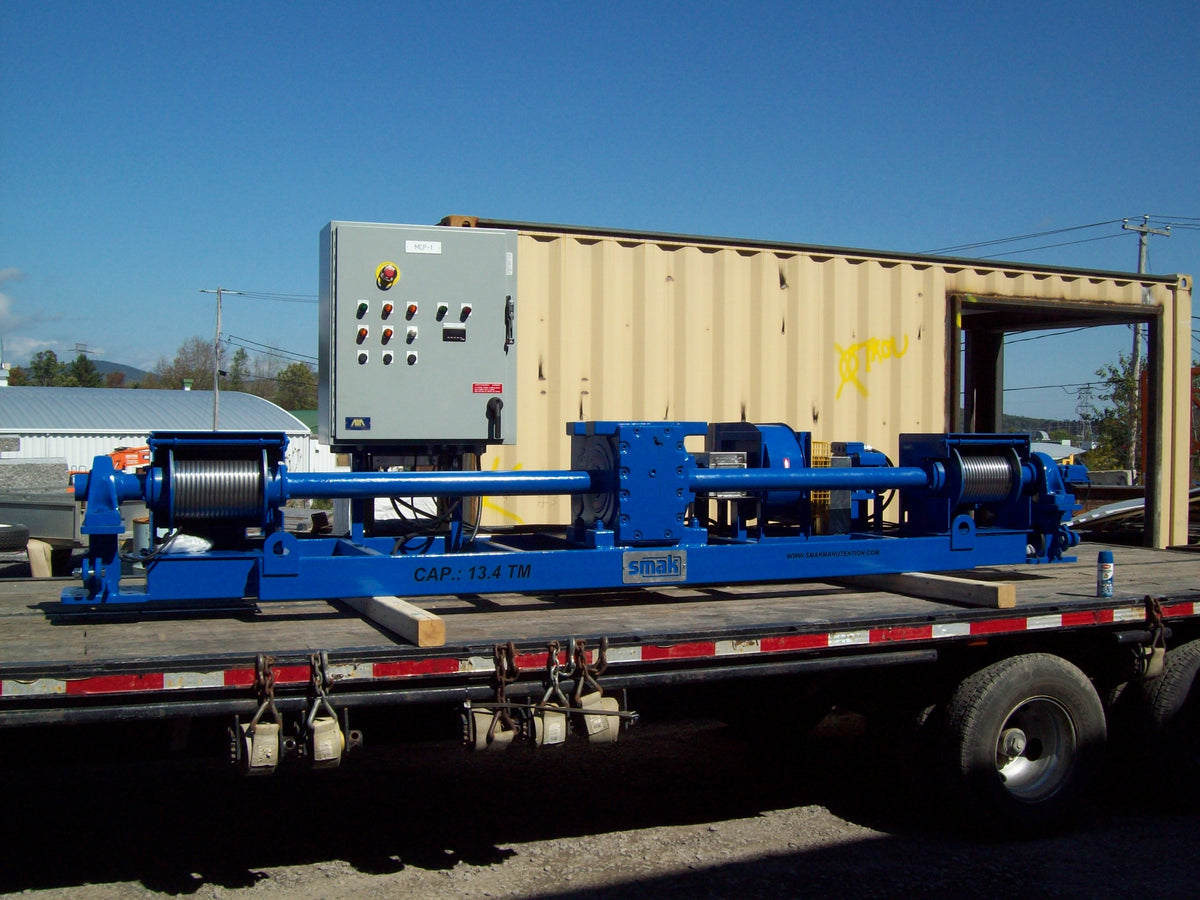

Hydroelectric dam trash-rack winch
- Client
- Boralex
- Location
- Kingsey Falls, Québec
- Application
- A double-drum electric winch used to operate a dam trash-rack cleaning system and help remove material obstructing the intake grid.
Key specifications
- 11,000 lb electric winch
- Slack-cable detection and overload limiting
- 2 × 130 ft of 7/16 in cable
02

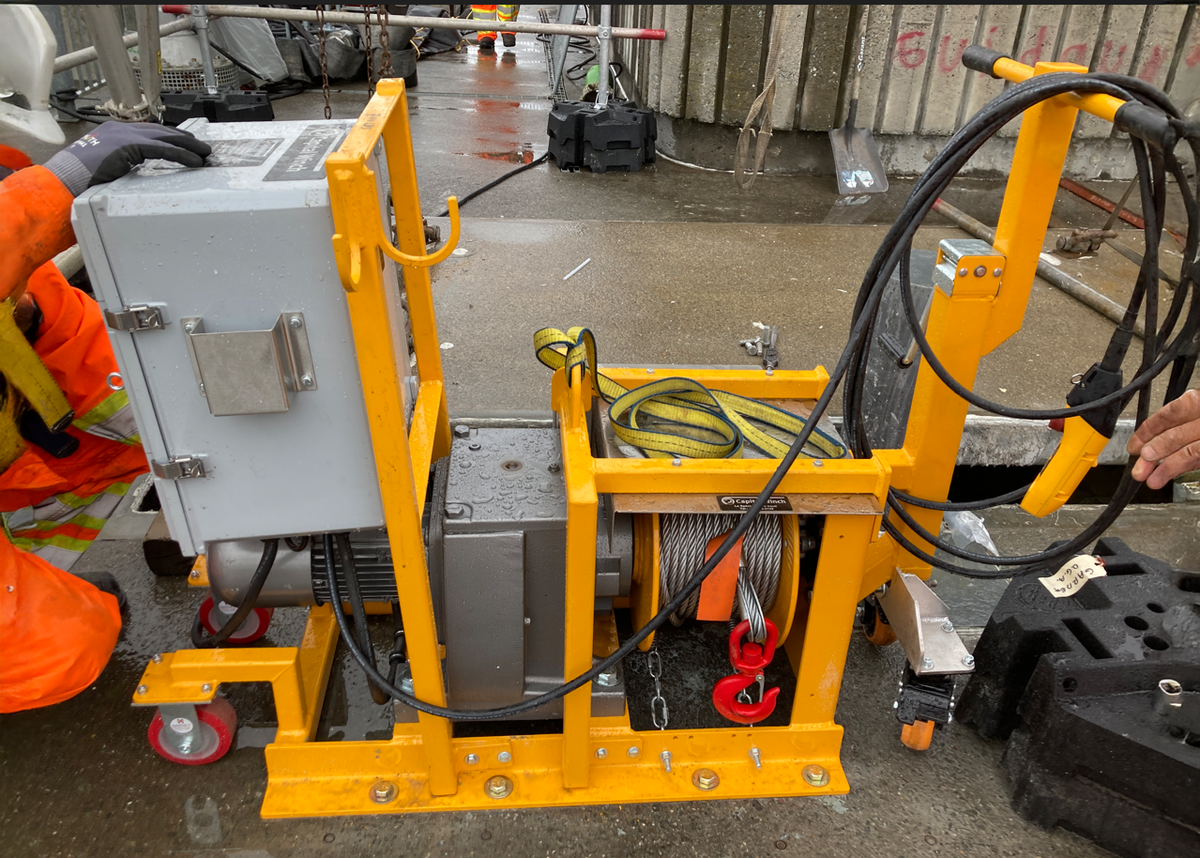

Mobile winch for stoplog gate lifting
- Client
- Québec Ministry of the Environment
- Location

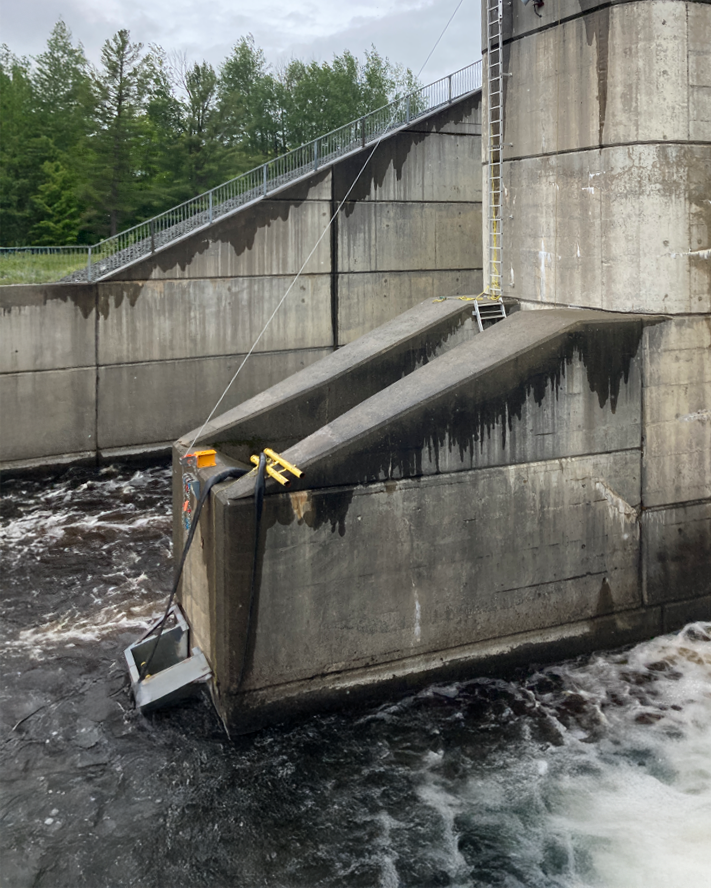

- Jules-Allard Dam · Saint-Joseph-de-Coleraine, Québec
- Application
- A mobile electric winch for lifting a stoplog gate, designed to be moved between operating positions and stored indoors when not in use.
Key specifications
- 5,000 lb electric winch
- Mobile frame with telescopic support
- Wired and radio remote controls
- 150 ft of 1/2 in cable
CAPITAL WINCH · QUÉBEC
Engineering and fabrication from Québec.
Large custom projects are generally developed, engineered and manufactured by the Capital Winch team in Québec.
- Application review
- Custom engineering
- Fabrication and technical support
PLANNING AN ENERGY OR WATER-CONTROL PROJECT?
Start with the operating requirements.
Share the load, travel, duty cycle, cable, controls, mounting and site conditions with our team.
