Construction & specialized equipment

Winch systems engineered for the jobsite.

Custom hoisting and pulling equipment developed around the load, travel, duty cycle and real conditions of construction work.

Discuss your application→View verified projects ↓
Capital Winch wire-rope hoist for Les Entreprises AtwaterEngineering drawing of the scaffold hoist

Engineering around the work

From the operating need to a practical system.

The winch, cable, controls, structure and safety functions are considered together for reliable integration into the customer’s equipment.

01

Hoisting and access

Solutions configured for scaffolding, vertical access and specialized lifting applications.

02

Custom mechanisms

Winches and hydraulic mechanisms developed for a specific motion or work cycle.

03

Jobsite integration

Power, controls, mounting and maintenance access reviewed as one complete system.

Verified construction projects

Two real projects designed around distinct operating requirements.

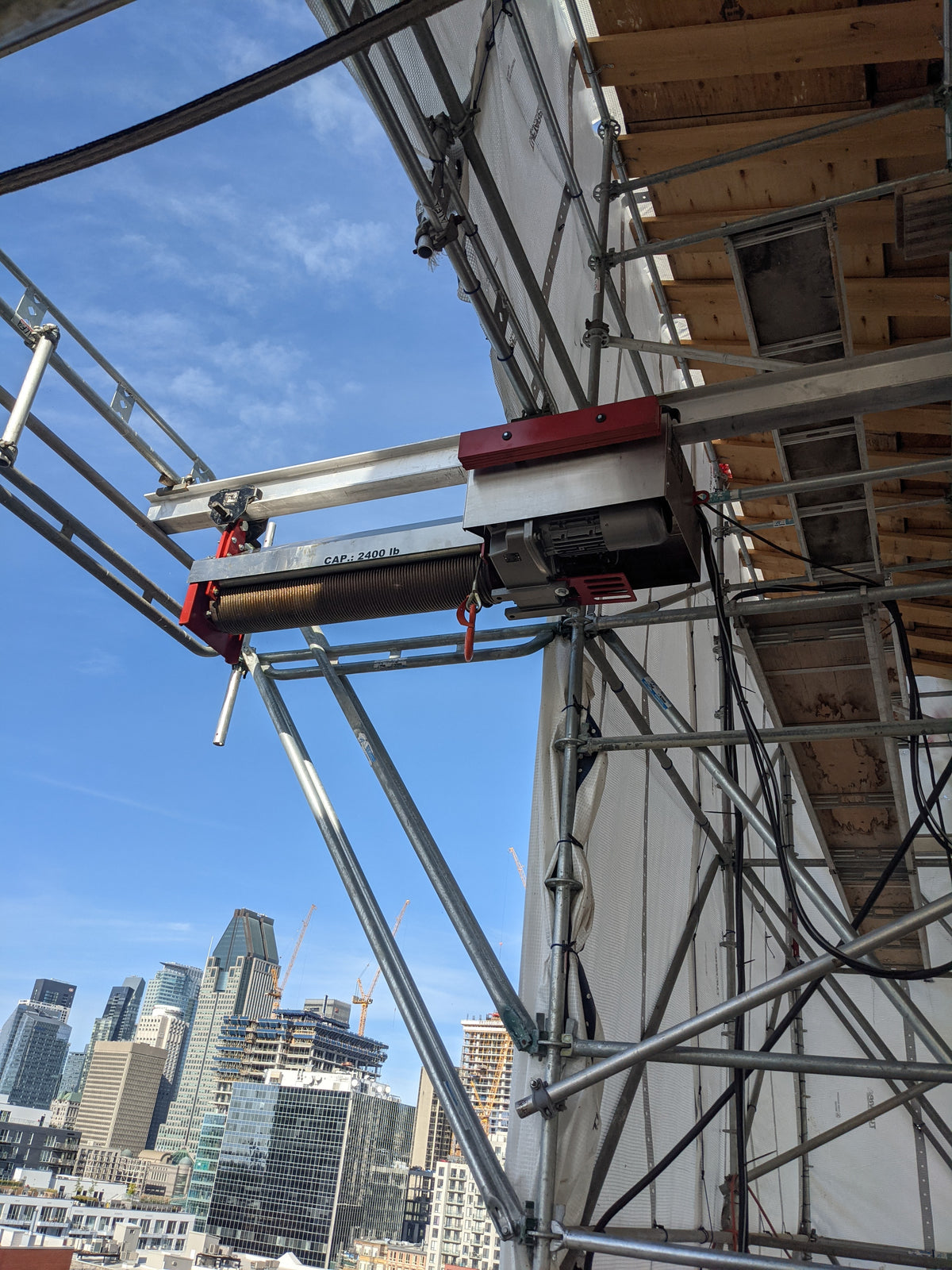

Capital Winch wire-rope hoist for Les Entreprises Atwater

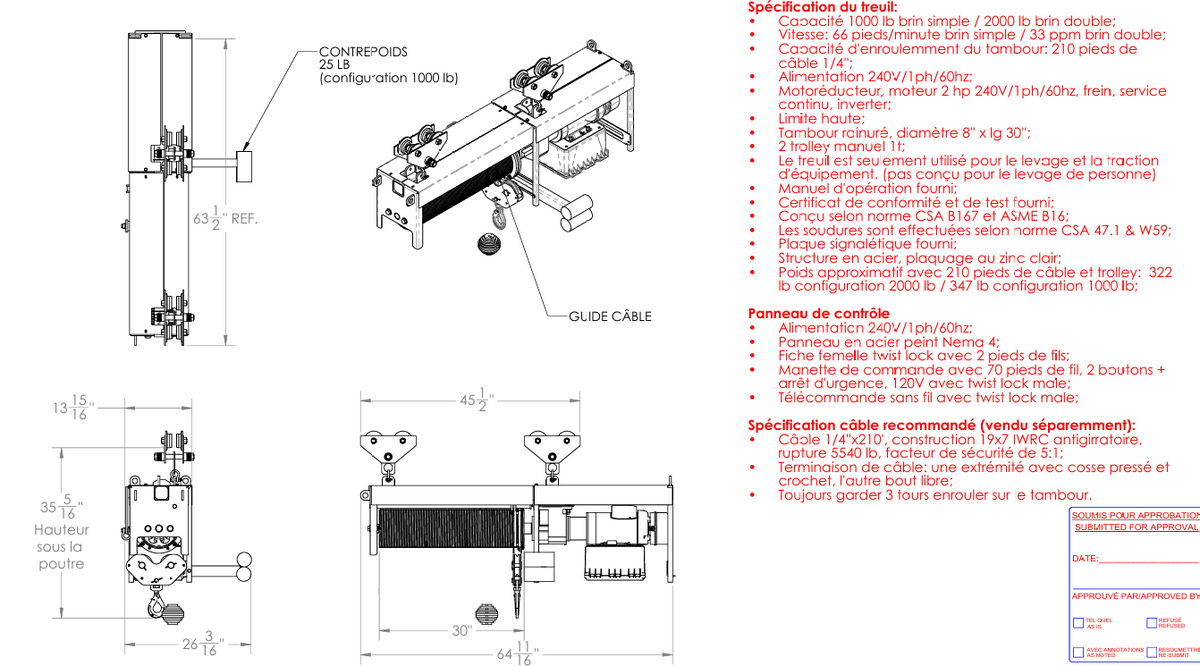

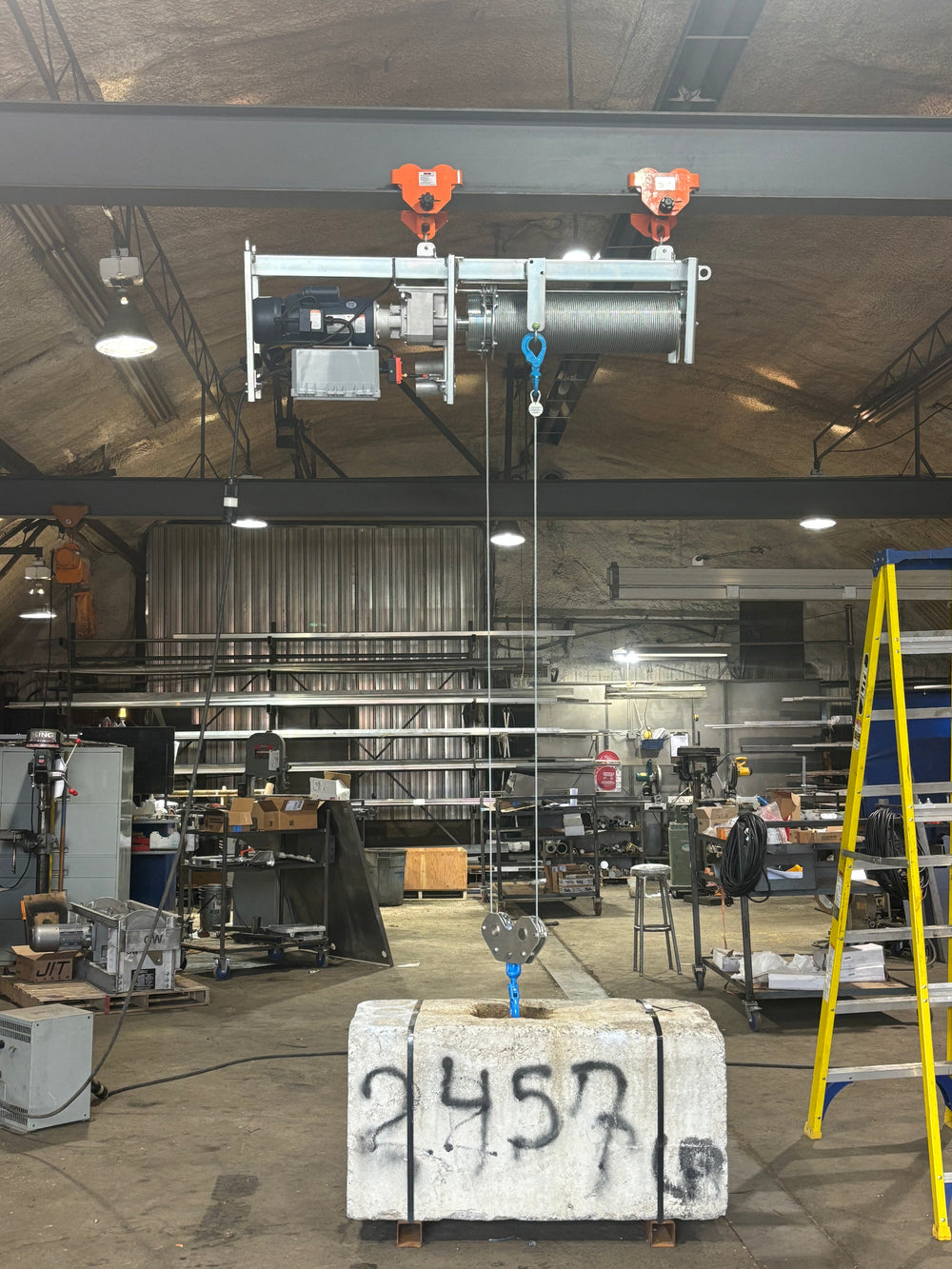

Scaffold hoist engineering drawingConstruction hoist detail
01

Wire-rope hoist for scaffolding

Client
Les Entreprises Atwater
Location
Montréal, Québec
Objective
Develop a scaffold hoist with increased brake reliability, a grooved drum to extend cable life and a continuous-duty motor.

Key specifications

  • 1,000 lb capacity over 200 ft
  • 2,000 lb capacity over 100 ft
  • Radio and wired remote controls
  • 240 V single-phase power
Discuss your application →

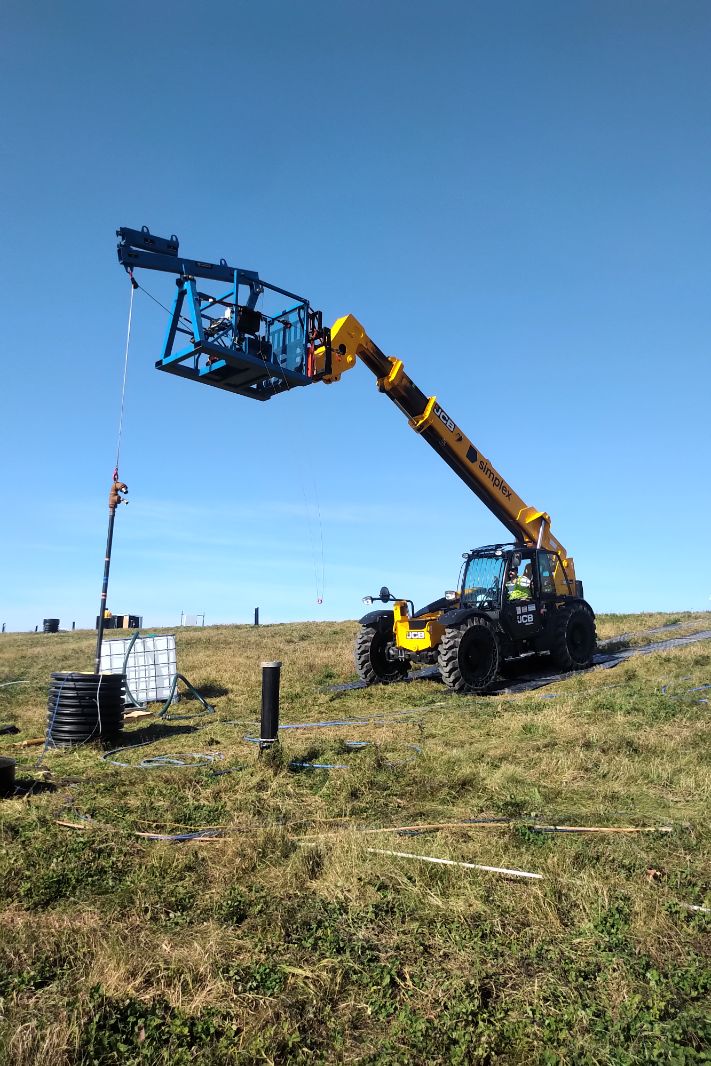

Hydraulic well-servicing system

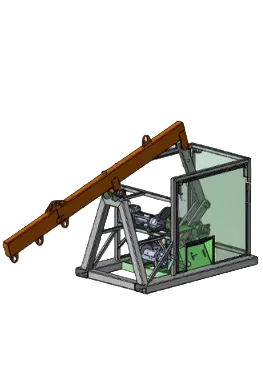

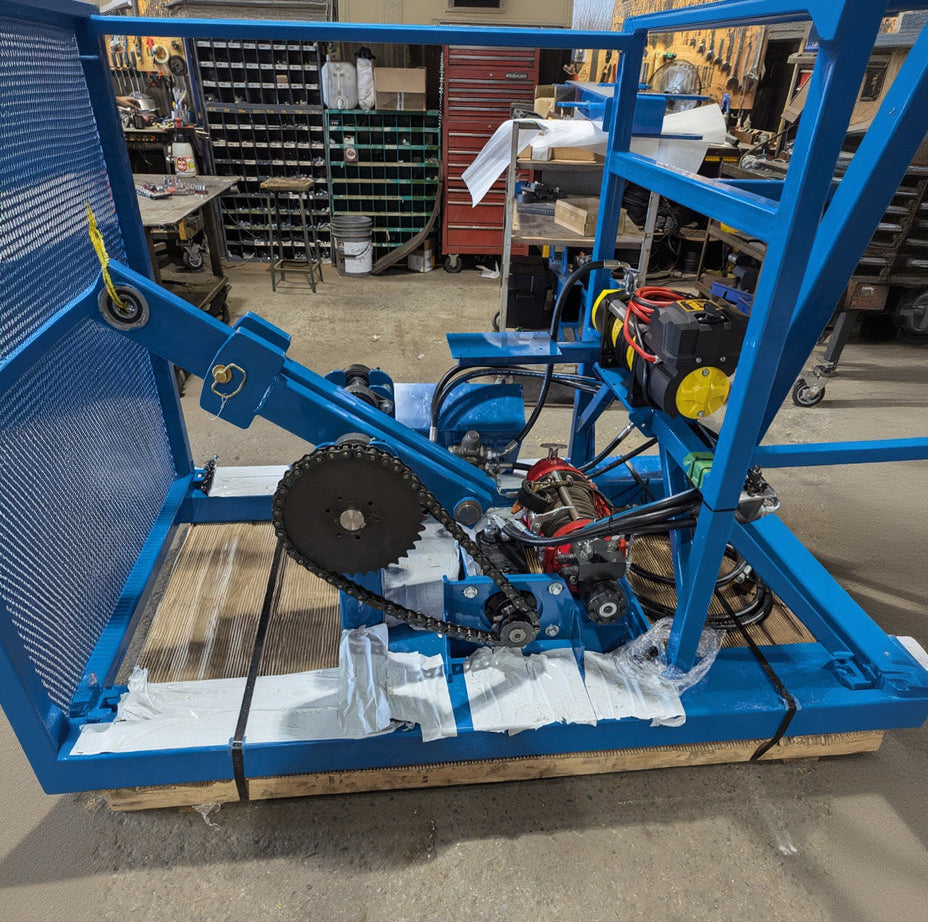

Hydraulic crank system drawingCapital Winch well-servicing equipment
02

Hydraulic well-servicing system

Client
Service Technique HG
Location
Mascouche, Québec
Objective
Develop a well-swabbing system whose hydraulic crank oscillates a cleaning brush over a 1 m stroke, with a hydraulic winch for operation down to 100 m.

Key specifications

  • 1 m crank stroke
  • 30 cycles per minute
  • 1,000 lb maximum oscillating load
  • 3,000 lb mast lifting capacity
  • Hydraulic winch with 100 m of cable
Discuss your application →

Capital Winch · Québec

Engineering and fabrication from Québec.

Large custom projects are generally developed, engineered and manufactured by the Capital Winch team in Québec.

  • Application review
  • Custom engineering
  • Fabrication and technical support

Planning a construction application?

Start with the operating requirements.

Share the load, travel, duty cycle, power, controls, mounting and jobsite constraints with our team.

Discuss the project→
