Warrior Winch

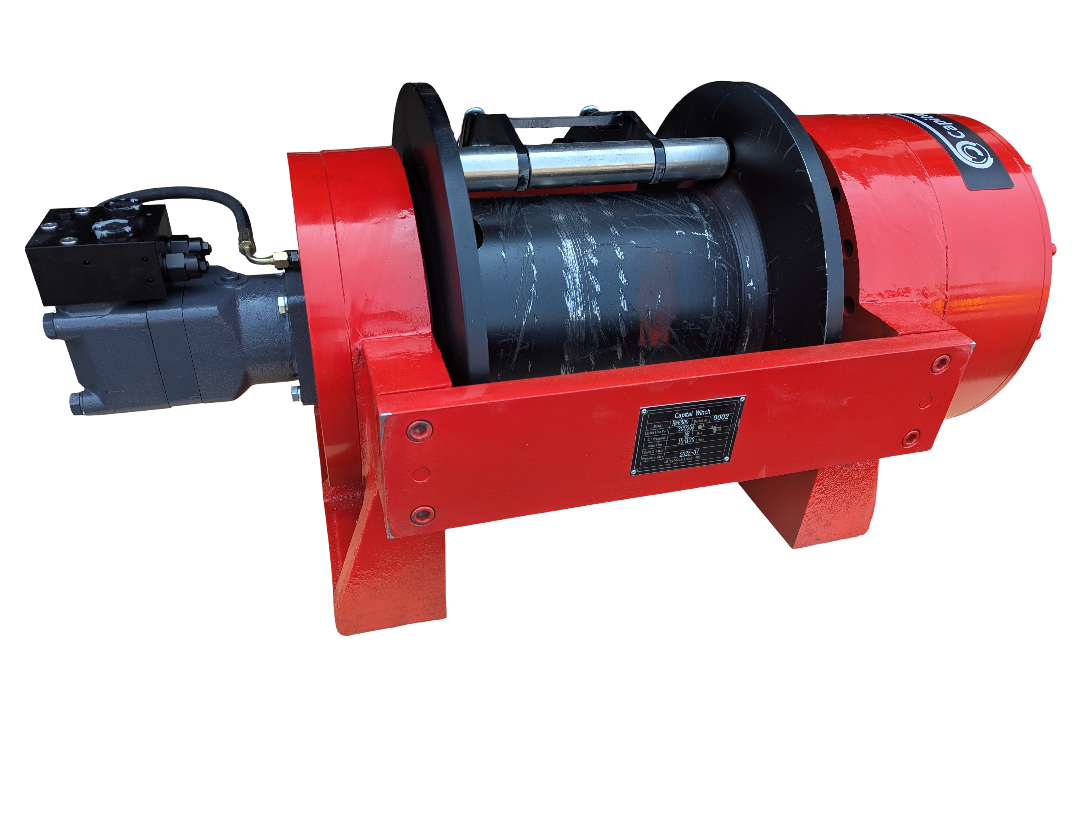

Hydraulic winch Warrior 20TJP

Regular price $14,500.00 CAD
Regular price $8,500.00 CAD Sale price $14,500.00 CAD
Sale Sold out
Shipping calculated at checkout.

Warrior winches have the best value for money. Compact and robust.

There JP-series is for commercial/industrial use, high capacity. The models 10TJP, 13.5TJP and 20TJP are kept in stock, models 15TJP, 25TJP, 30TJP are available on order (60-90 days)

Characteristics

  • Hydraulic brake with integrated safety
  • Capacity at first layer: 44000 lbs.
  • Capacity at last layer (full drum): 24000 lb
  • Vitesse: 23 ppm
  • Pneumatic drum disengagement (freespool), optional manual lever
  • Maximum oil flow: 33 gpm
  • Maximum hydraulic pressure: 2465 psi
  • Hydraulic damper valve
  • Cable pressure roller
  • Complies with SAE-J706 and GJB82-86
  • Ratio D/d = 9:1
  • Weight: 815 lbs.
  • Power: 47hp
  • 2:1 safety factor on the cable
  • Cable with hook included, diameter 1.02'' (26mm) x 160'

To download the brochure, click here

To download the operation manual, click here

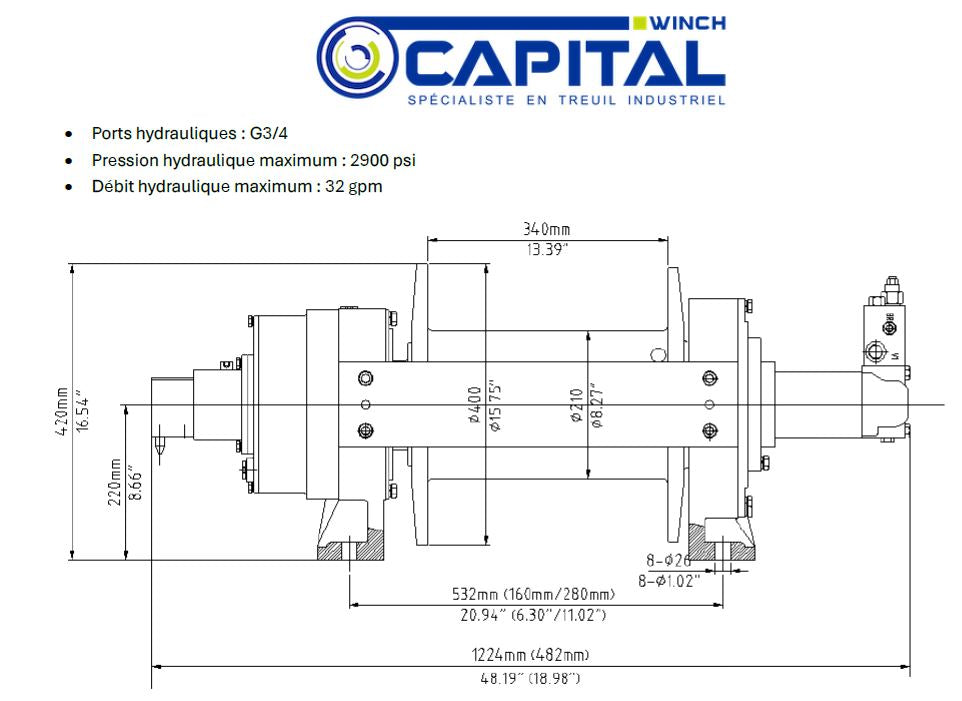

To download the drawing, click here
