CUSTOM WINCH SYSTEMS

A winch engineered around your application.

When a standard product does not fit the load, travel, duty cycle or installation, Capital Winch develops the complete working system.

Discuss your application→See how we work↓
Self-contained hydraulic winch system
Capital WinchEngineering · Fabrication · Integration

MORE THAN A WINCH

The equipment around the winch matters too.

We can develop the winch, supporting structure, hydraulic power unit, cable management and controls as an integrated solution.

01

Winch configuration

Capacity, drum, cable, drive and brake selected around the real operating requirement.

02

Structures and integration

Frames, lifting points, mounting, access and connected equipment designed as part of the system.

03

Power and controls

Electric or hydraulic drive, control architecture and operating interfaces matched to the application.

A PRACTICAL DEVELOPMENT PROCESS

From operating requirements to fabricated equipment.

  1. 01

    Define the application

    Load, travel, cable, speed, duty cycle, environment and applicable constraints.

  2. 02

    Engineer the system

    Winch selection, drum geometry, structure, power, controls and integration are developed together.

  3. 03

    Fabricate and assemble

    The system is manufactured and assembled by the Capital Winch team in Québec.

  4. 04

    Support the project

    Documentation, coordination and technical support continue through delivery and integration.

REAL CAPITAL WINCH EQUIPMENT

Custom work takes different forms.

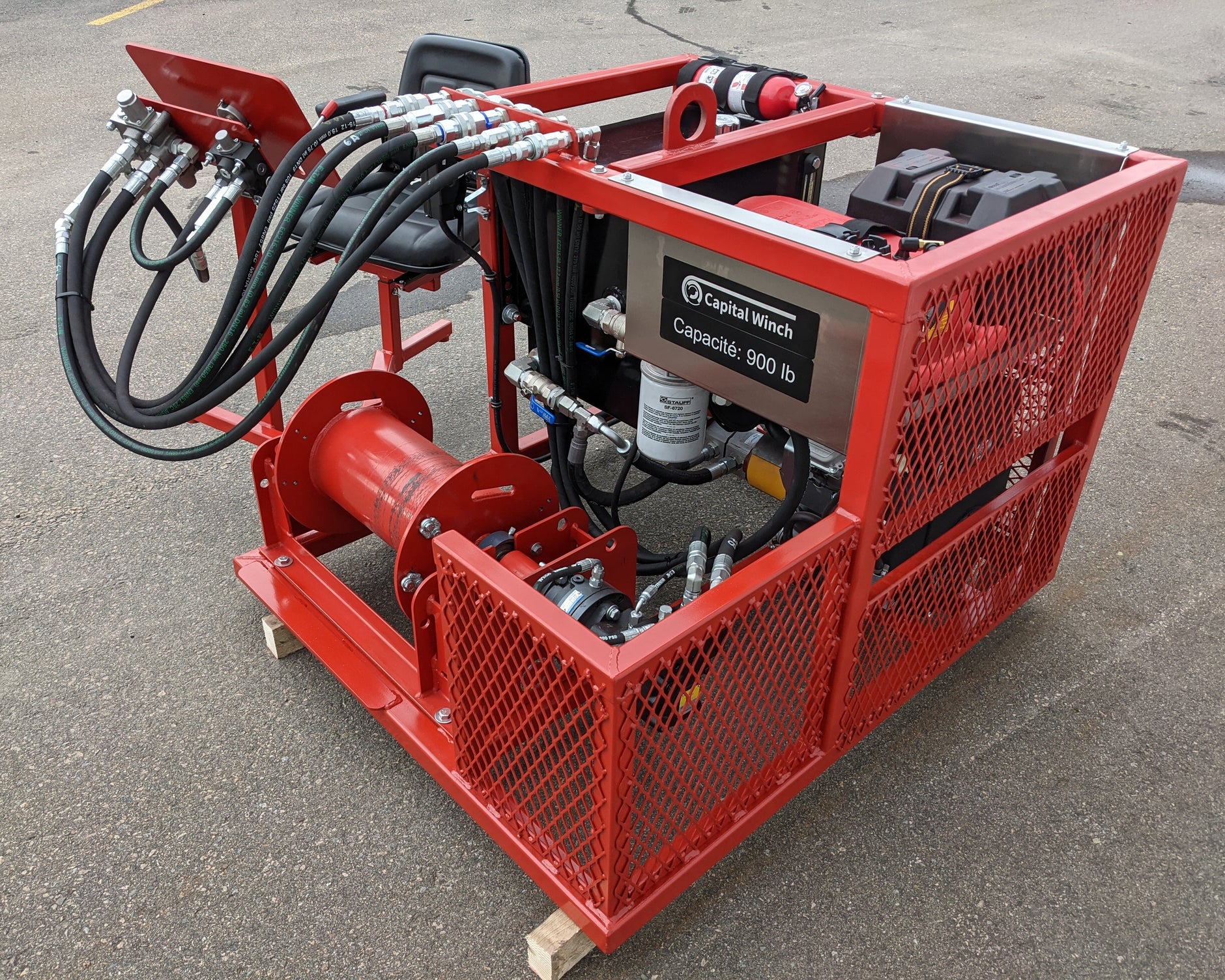

Self-contained hydraulic winch system
01

Self-contained hydraulic winch system

A winch, power unit and supporting structure developed as one transportable system.

Custom-fabricated winch assembly
02

Custom-fabricated winch assembly

A fabricated solution configured around the equipment, installation and operating cycle.

Purpose-built trailer winch
03

Purpose-built trailer winch

A practical winch package designed around mobile equipment and field use.

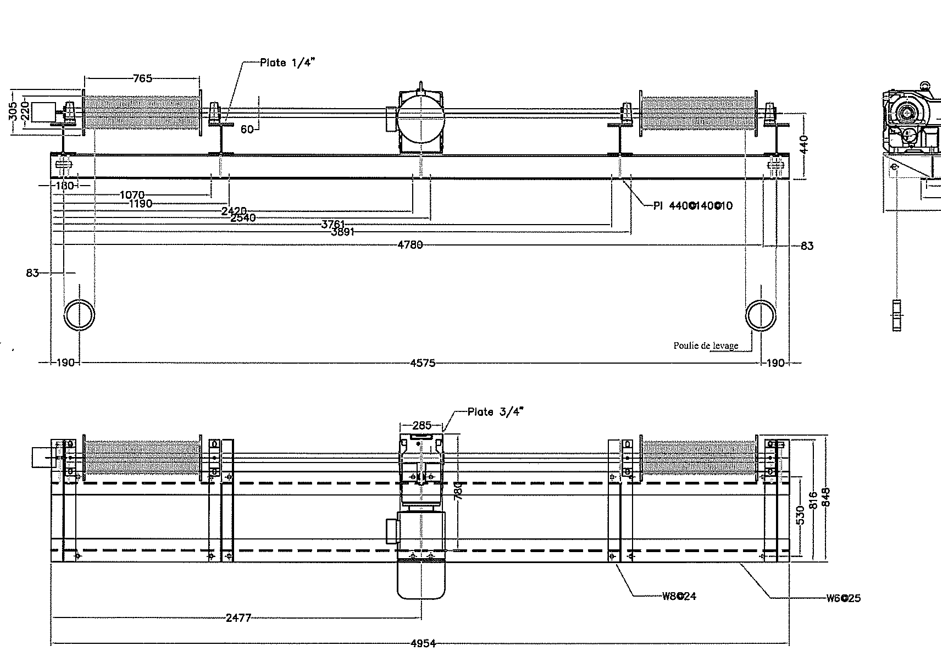

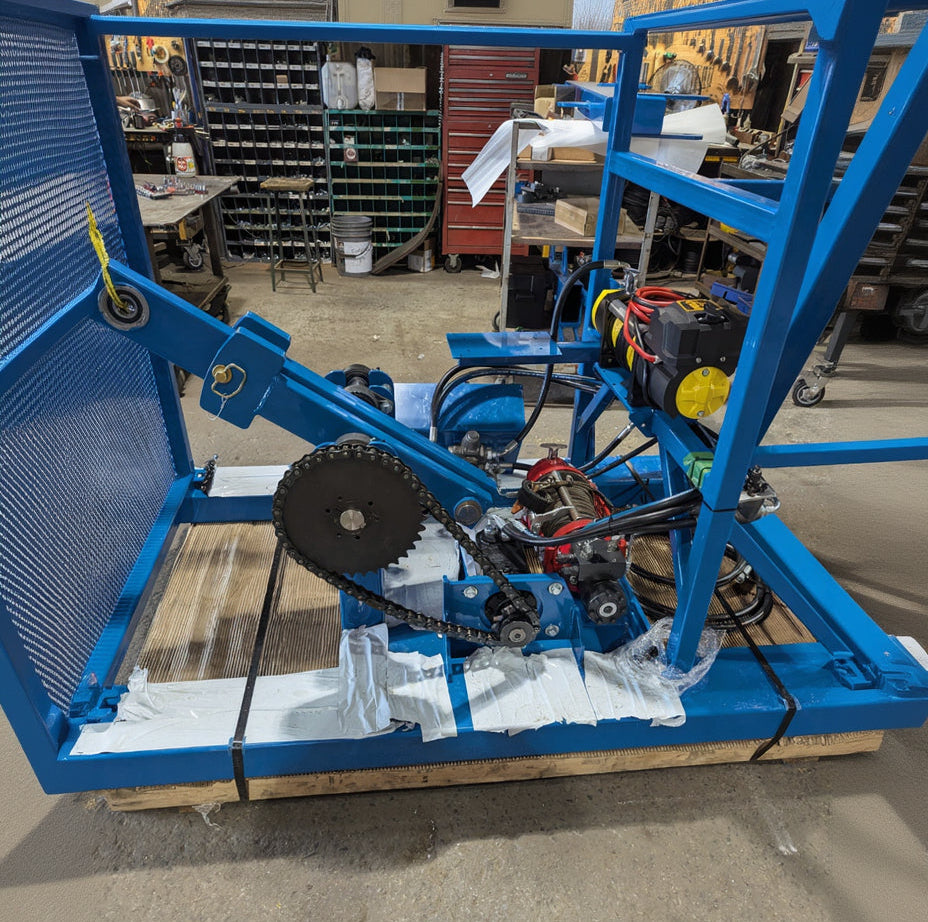

Capital Winch engineering drawingCapital Winch field equipment

What to send our team

You do not need a finished specification. Start with the information you already have.

  • Required line pull or lifted load
  • Travel and available cable length
  • Speed and duty cycle
  • Electric or hydraulic power
  • Mounting space and orientation
  • Controls and operating environment

PLANNING A SPECIALIZED LIFTING OR PULLING APPLICATION?

Start with the work the equipment must perform.

Our team can help translate the operating need into a practical winch system.

Discuss your application→
