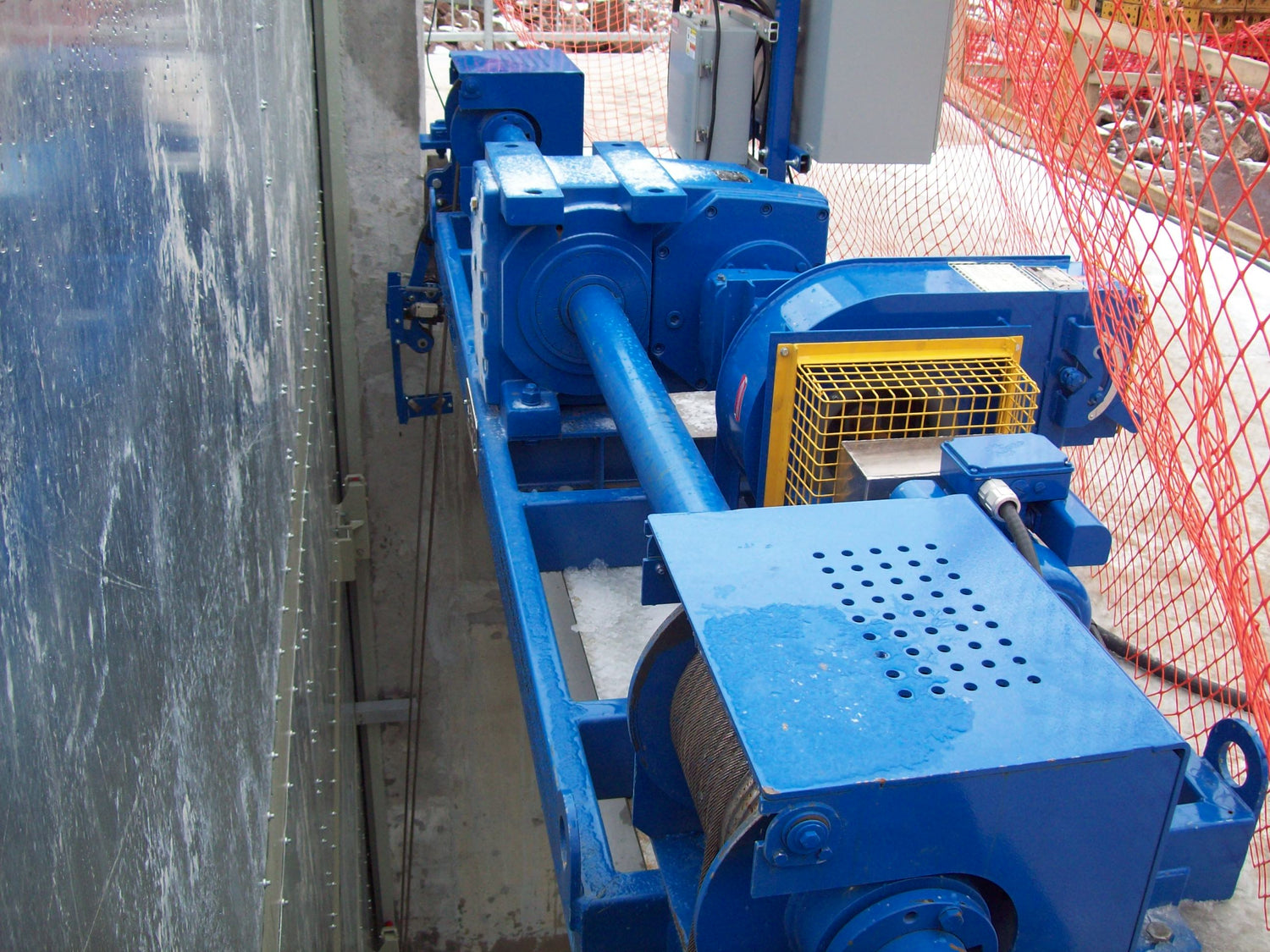

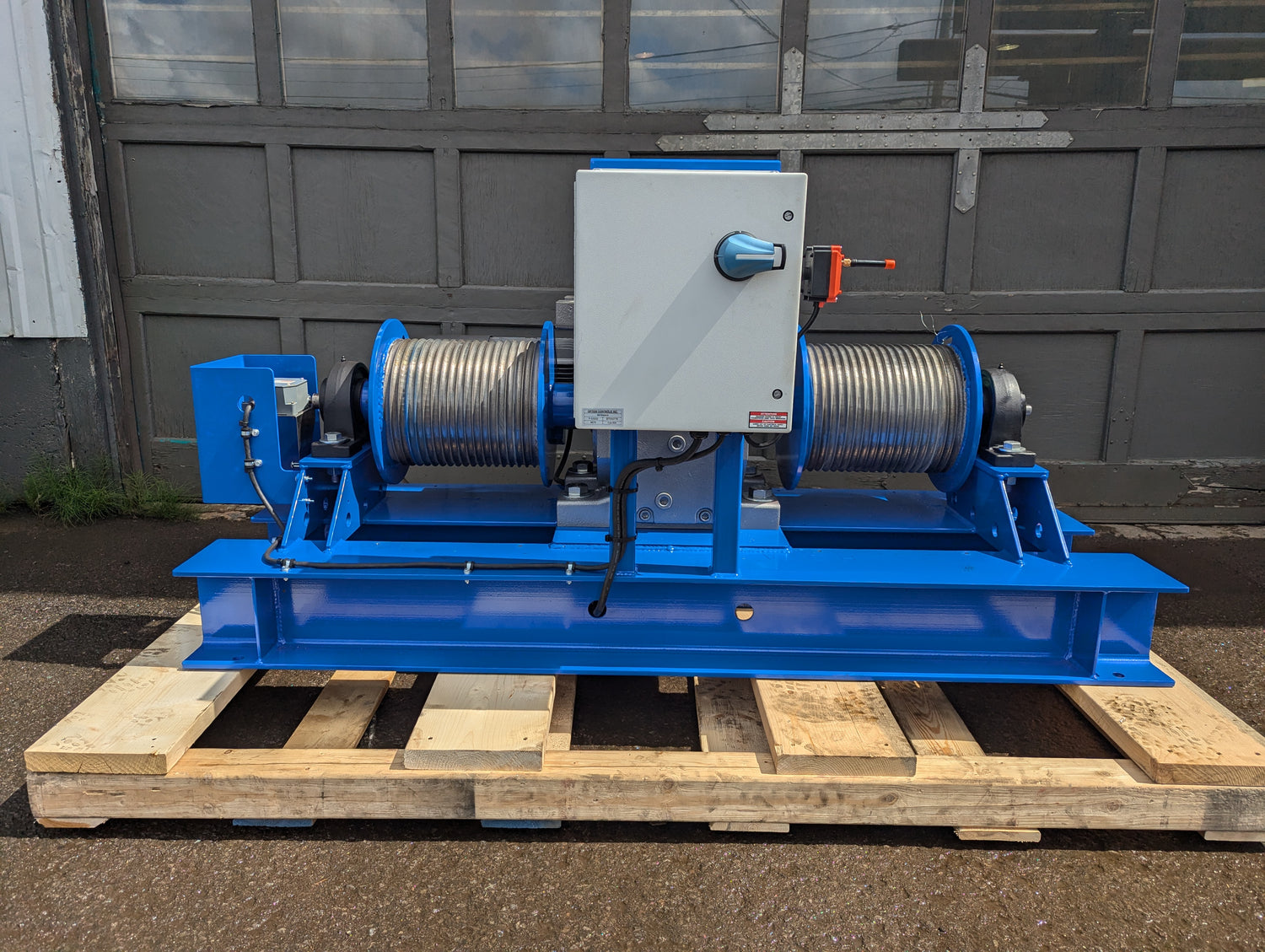

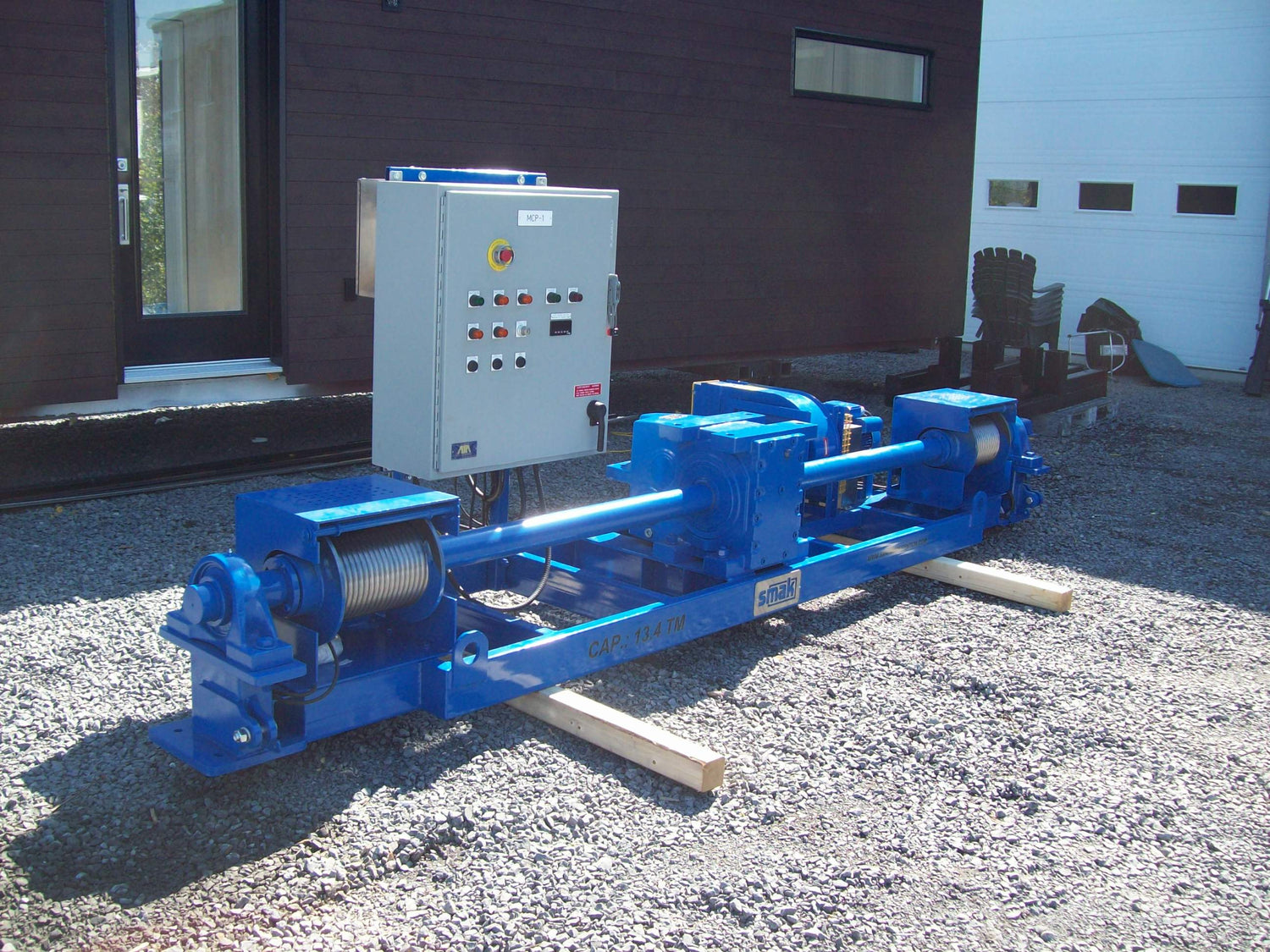

• EL2A series winches are equipped with two drums. They are used in applications such as: door lifting, dam door lifting, conveyor lifting, counterweight lifting, etc.
• The EL2A Series winch is designed to ASME B30.7-2021, Winches: Safety Standard for Cableways, Cranes, Derricks, Hoist, Hooks, Jacks, and Slings .
• For use with a cable with a safety factor of 5:1.
• A minimum drum/cable ratio of 15:1.
• A three-phase AC electric motor with continuous duty. Different voltages available (575V, 460V, 400V, 230V and others)
• A bevel gear reducer with a minimum service factor of 1.0
• Spring applied electromagnetic brake released when motor is activated.
• Sealed bearing.
• Steel structure, welding according to CWB W47.1.
• Powder paint finish, blue color.
• The cable is sold separately.

Options:

• Winter kit 1 (synthetic oil, engine heater, electrical panel heater, brake corrosion protection).
• Tension roller to hold the cable in place when there is no tension.
• Grooved drum
