EC Series

Winch 100 to 25000 lbs

Here is our model of electric capstan winch for the
traction or lifting applications, designed to meet the most demanding needs.

Capstan Technical Specifications

  • The EC series winch is equipped with a capstan drum.
  • Designed according to ASME B30.7-2021, Winches: Safety Standard for Cableways, Cranes, Derricks, Hoist, Hooks, Jacks, and Slings .
  • A continuous duty AC electric motor. Different voltages available (600V, 460V, 400V, 240V, 120V and others)
  • A helical gear reducer with a service factor of 1.0 minimum
  • Spring applied electromagnetic brake released when motor is activated.
  • Steel structure, welding according to CWB W47.1.
  • Powder paint finish, blue color.
  • The rope is sold separately.

    Control panel (sold separately)

    • NEMA 4 gray painted steel enclosure.
    • CSA approved.
    • Foot pedal control with 10 feet of wire.
    • Bracket for fixing directly to the winch.

    Option:

    • NEMA 4X polycarbonate enclosure.
    • NEMA 4X stainless steel enclosure.
    • Load cell for displaying tensile force.
    • Frequency inverter (variable speed, progressive acceleration, capacity limit)

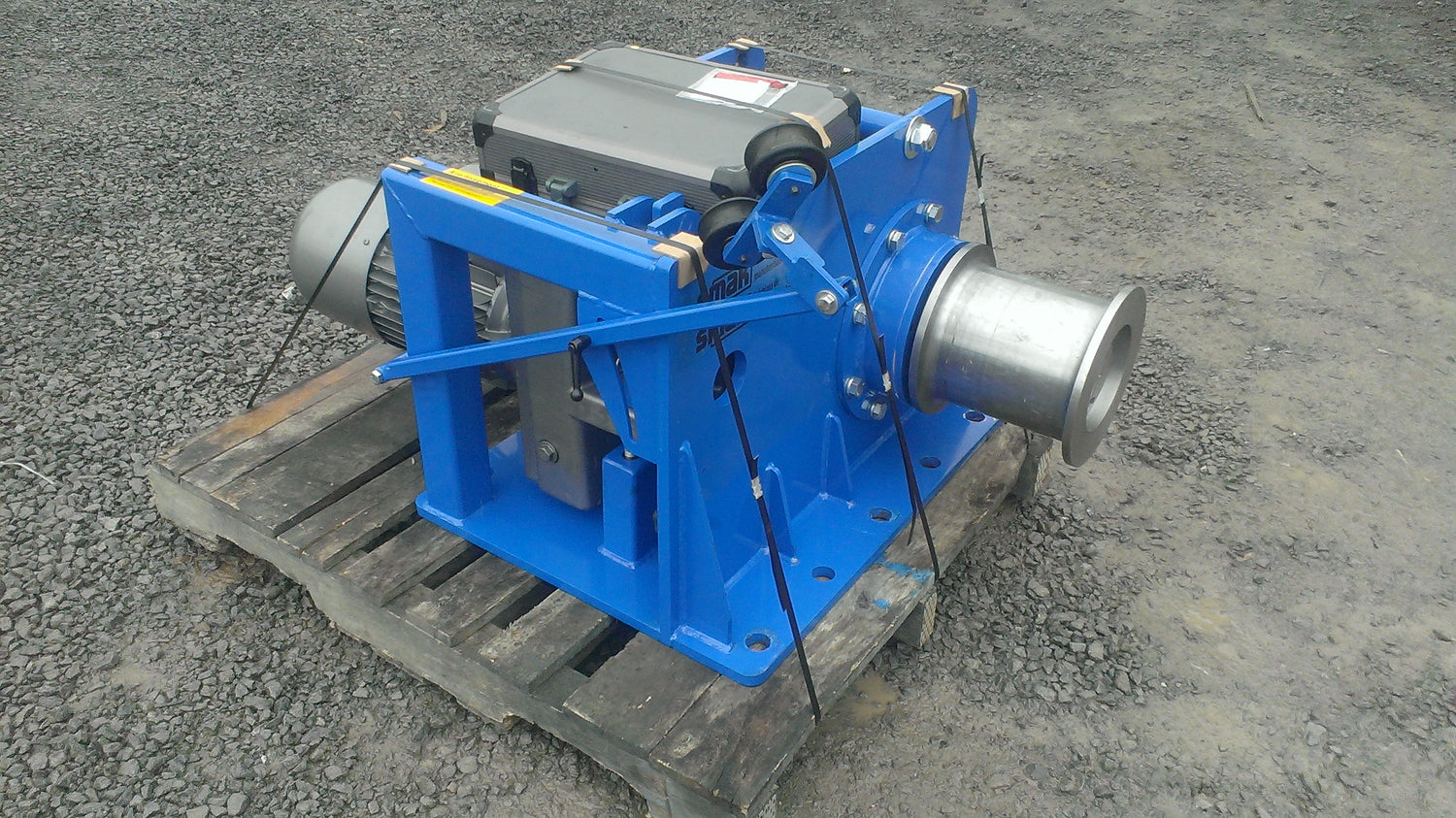

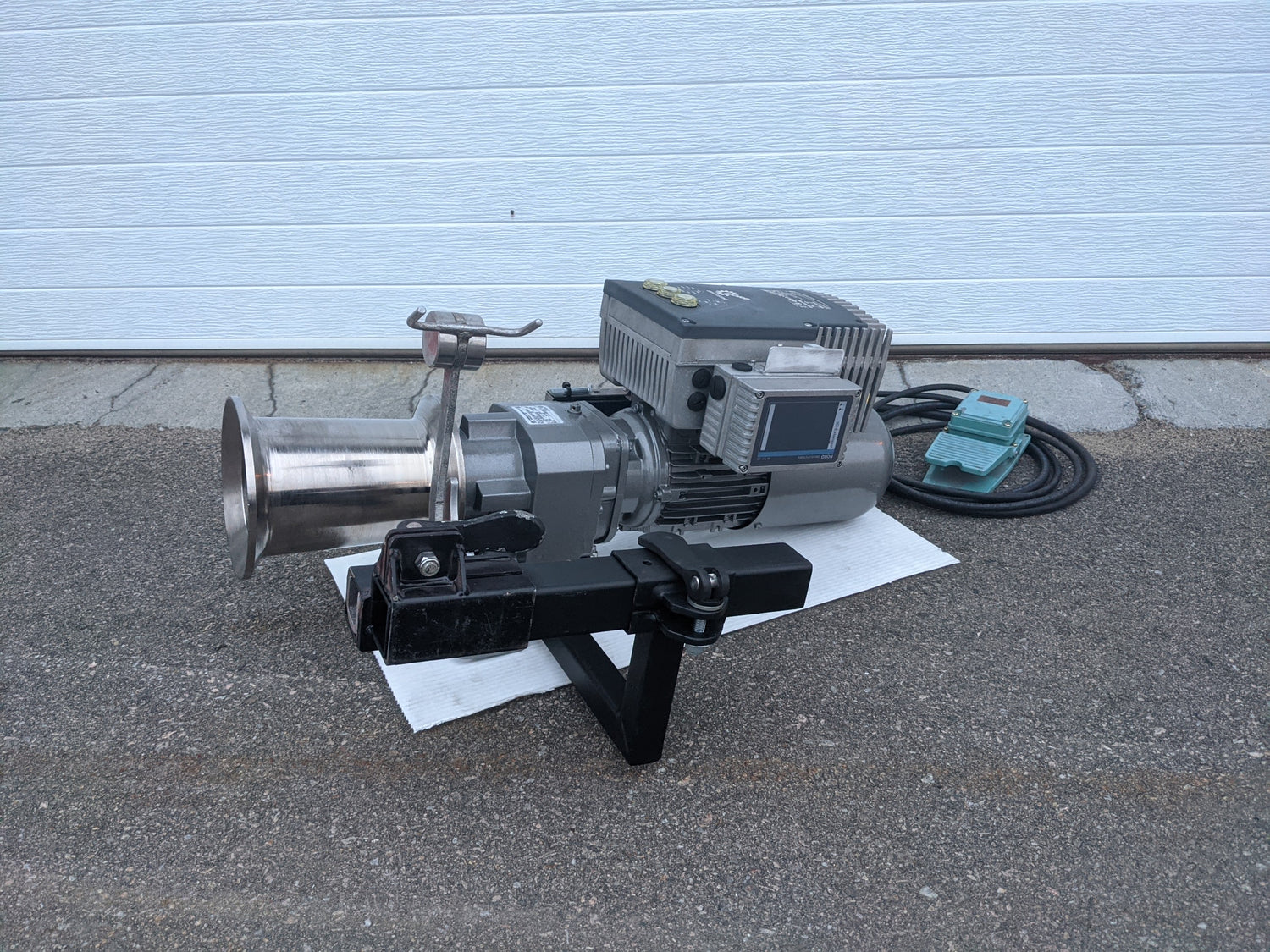

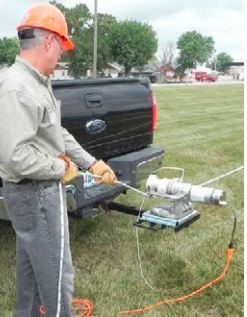

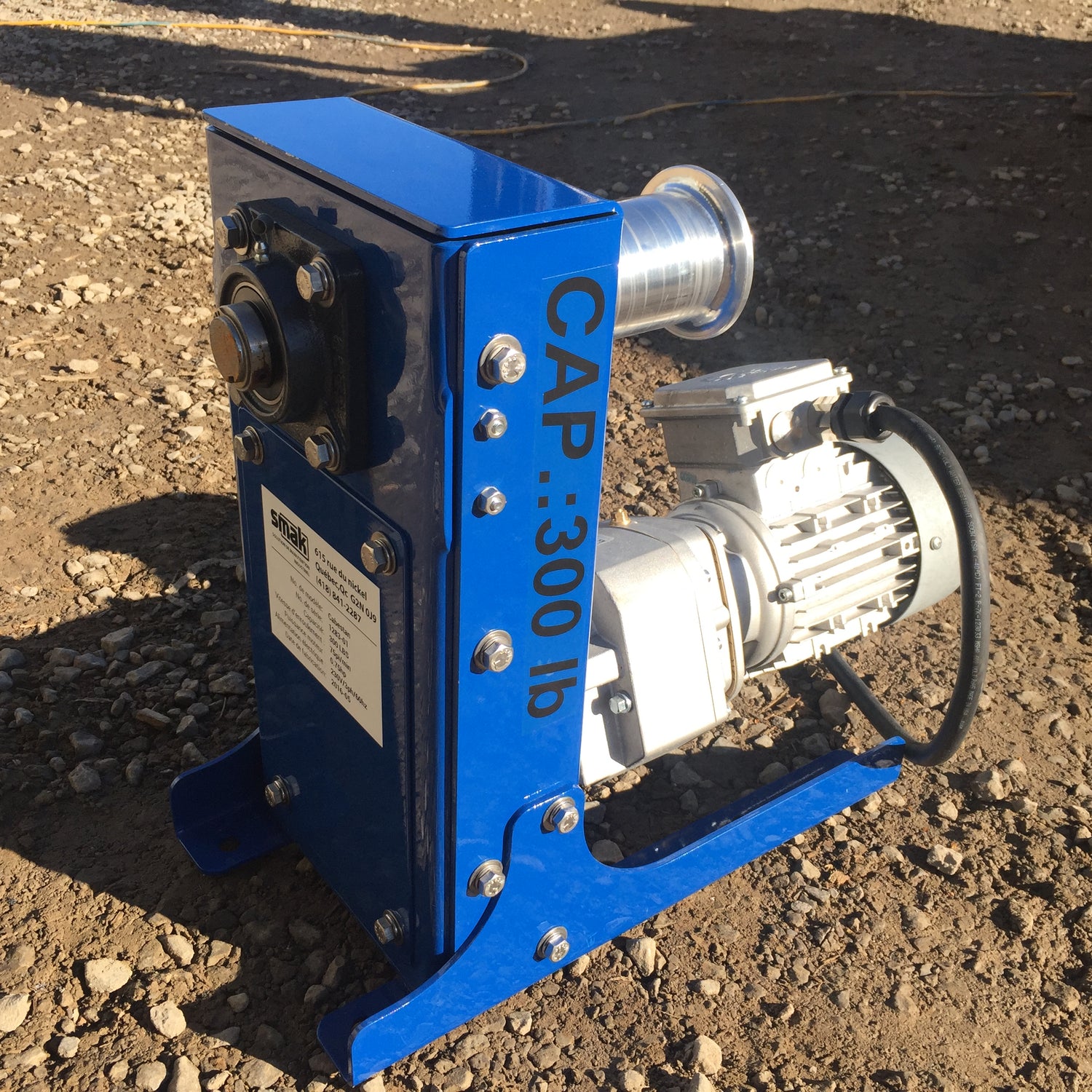

    Achievements
