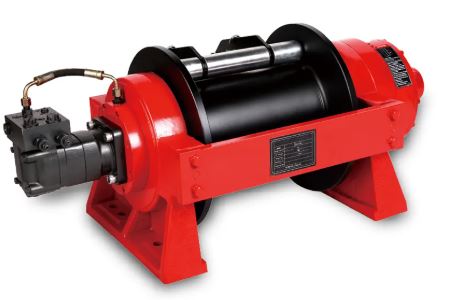

Warrior 13.5TJP hydraulic winch

Warrior winches have the best value for money. Compact and robust.

There JP-series is for commercial/industrial use, high capacity. The models 10TJP, 13.5TJP and 20TJP are kept in stock, models 15TJP, 25TJP, 30TJP are available on order (60-90 days)

Characteristics

• Hydraulic brake with integrated safety
• Capacity at first layer: 30000 lbs.
• Capacity at last layer: 18500 lbs.
• Vitesse: 17 ppm
• Pneumatic drum disengagement (freespool), optional manual lever
• Maximum oil flow: 16 gpm
• Maximum hydraulic pressure: 2465 psi
• Hydraulic damper valve
• Cable pressure roller
• Complies with SAE-J706 and GJB82-86
• Ratio D/d = 11.5
• Weight: 597 lbs.
• Power: 23hp
• 2:1 safety factor on the cable
• Cable with hook included, diameter 18mm x 160'

To download the brochure, click here

To download the operation manual, click here

To download the drawing, click here
