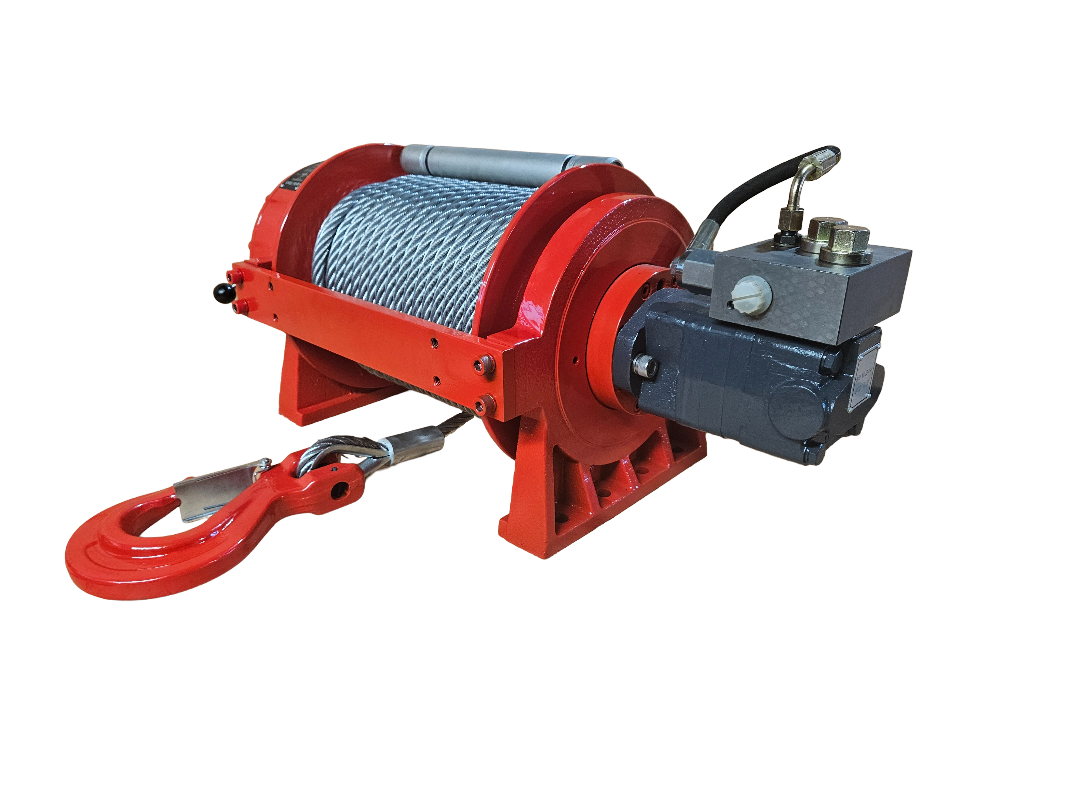

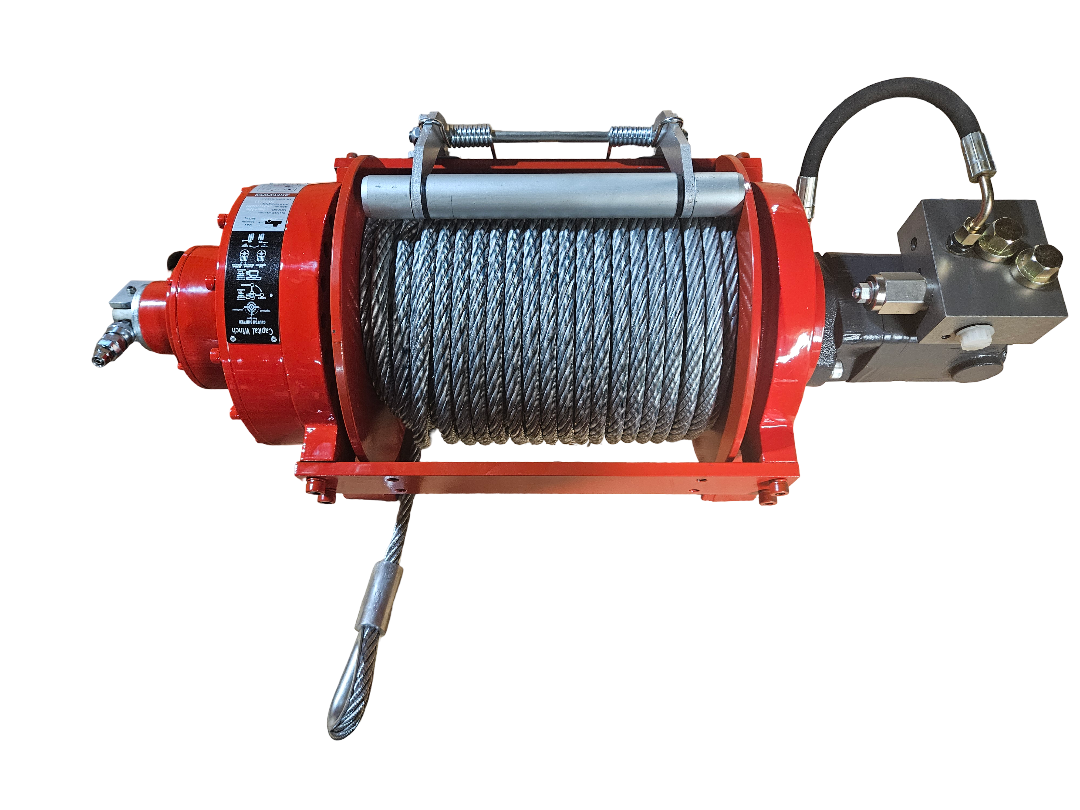

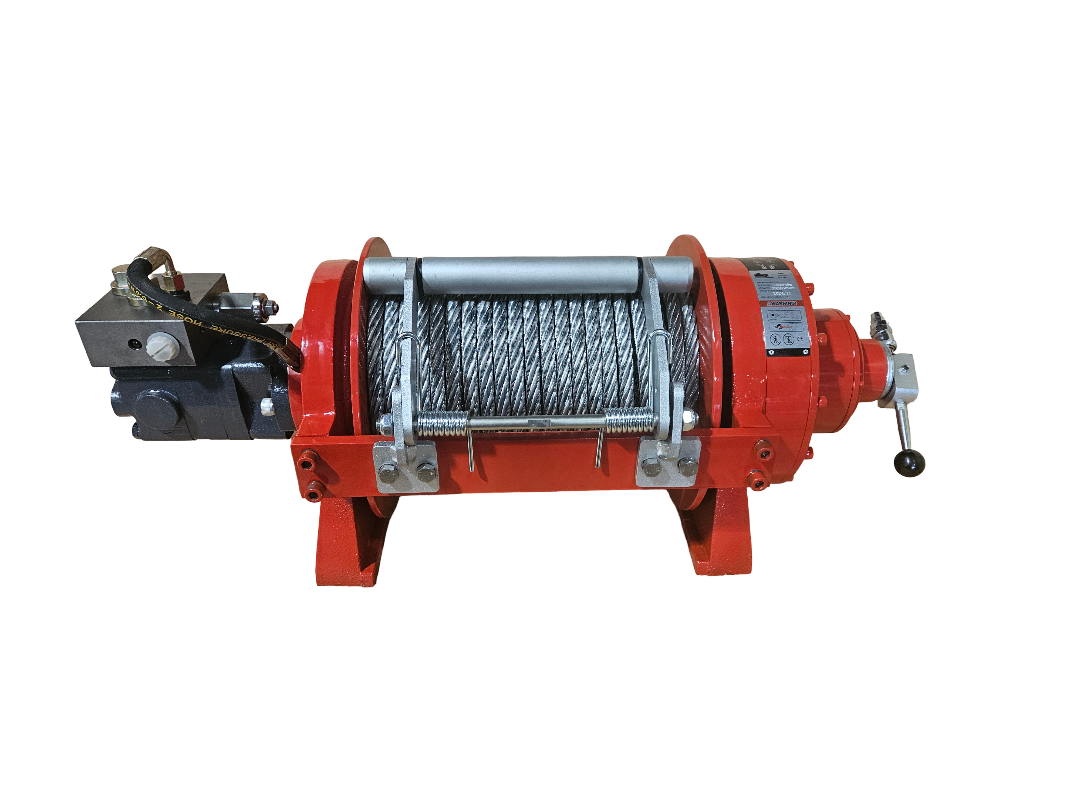

Hydraulic winch Warrior 10TJP

Warrior winches have the best value for money. Compact and robust.

There JP-series is for commercial/industrial use, high capacity. The model 10TJP is kept in stock, the model 13.5TJP, 15TJP, 20TJP, 25TJP, 30TJP are available on order (60-90 days)

Characteristics

• Hydraulic brake with integrated safety
• Capacity at first layer: 22000 lbs.
• Capacity at last layer: 12881 lbs.
• Vitesse: 29.5 ppm
• Pneumatic drum disengagement (freespool), optional manual lever
• Maximum oil flow: 20 gpm
• Maximum hydraulic pressure: 2450 psi
• Hydraulic damper valve
• Cable pressure roller
• Meets SAE-J706 standard
• Ratio D/d = 9
• Weight: 360 lbs.
• Power: 28hp
• 2:1 safety factor on the cable
• Cable with hook included, diameter 15mm x 157'

To download the brochure, click here

To download the operation manual, click here

To download the drawing, click here
