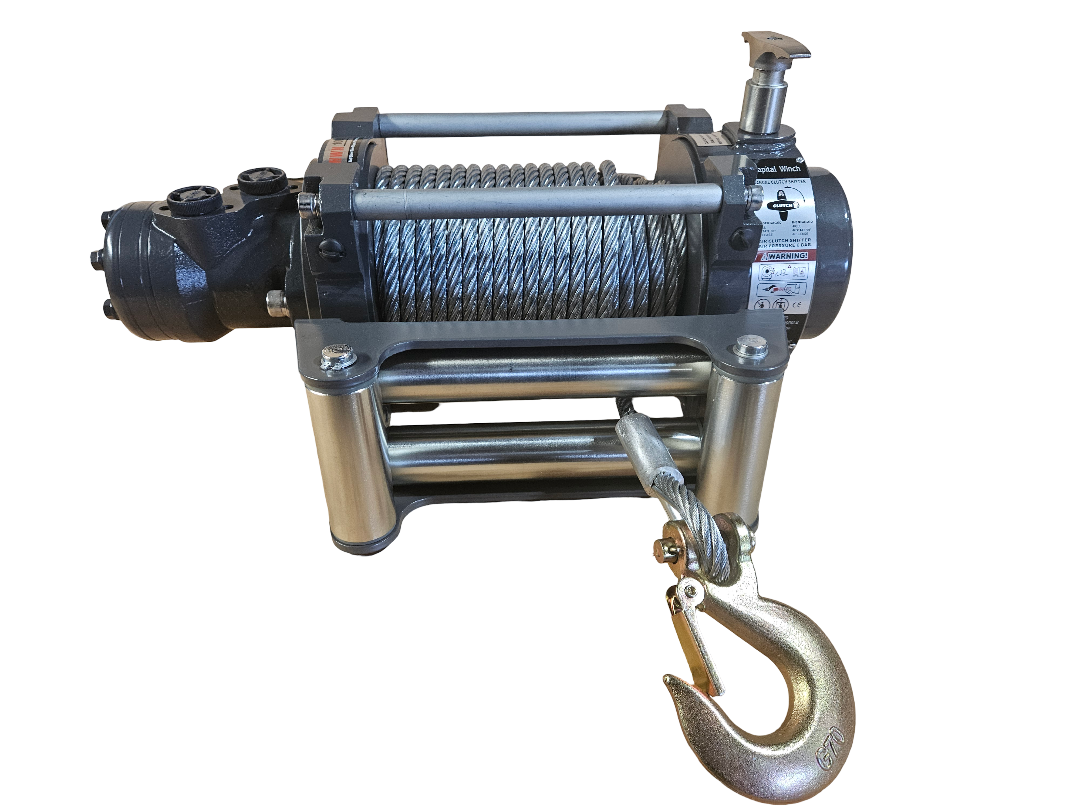

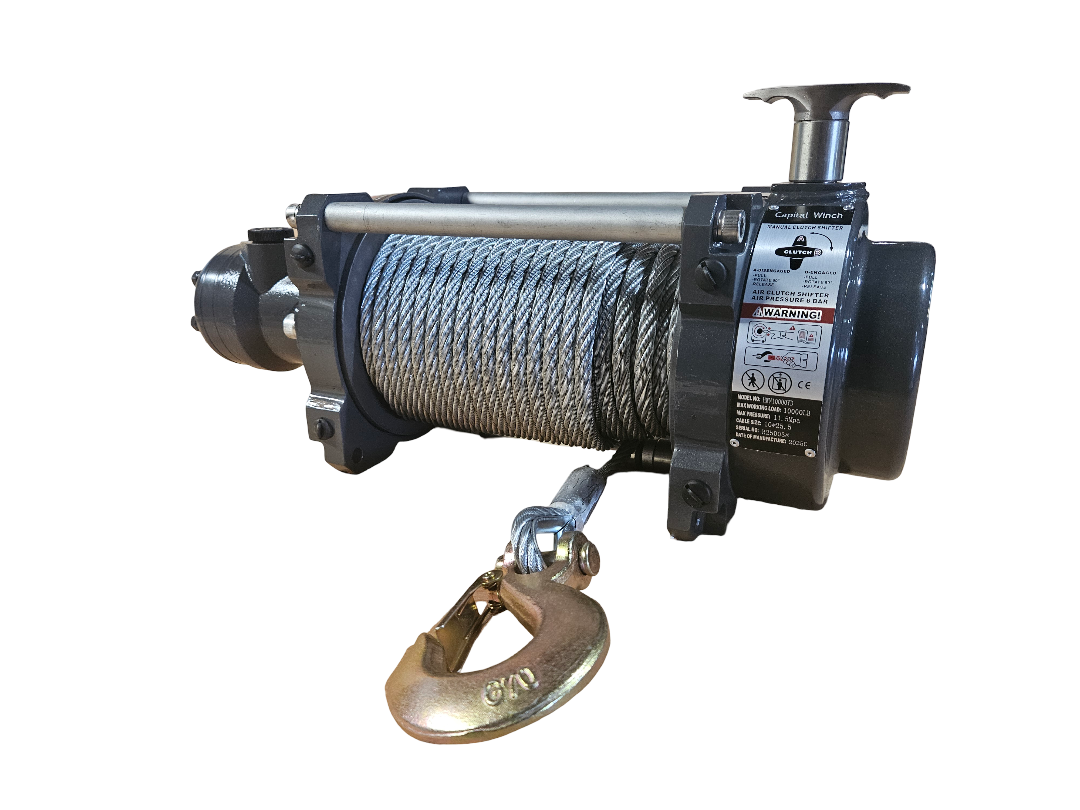

Warrior 10000NH hydraulic winch

Warrior winches have the best value for money. Compact and robust.

There NH series is for occasional use, off-road vehicle, tractor, utility trailer application.

Characteristics

• Internal safety brake
• Capacity at first layer: 10000 lbs.
• Capacity at last layer: 5732 lbs.
• Vitesse: 20 ppm
• Manual drum disengagement (freespool), air option #ATC002
• Maximum oil flow: 12 gpm
• Maximum hydraulic pressure: 1800 psi
• Cable pressure roller
• Ratio D/d = 7
• Weight: 117 lbs.
• Power 12.5hp
• 2:1 safety factor on the cable
• Cable with hook included, diameter 10mm x 84'

To download the brochure, click here

To download the operation manual, click here

To download the drawing, click here
