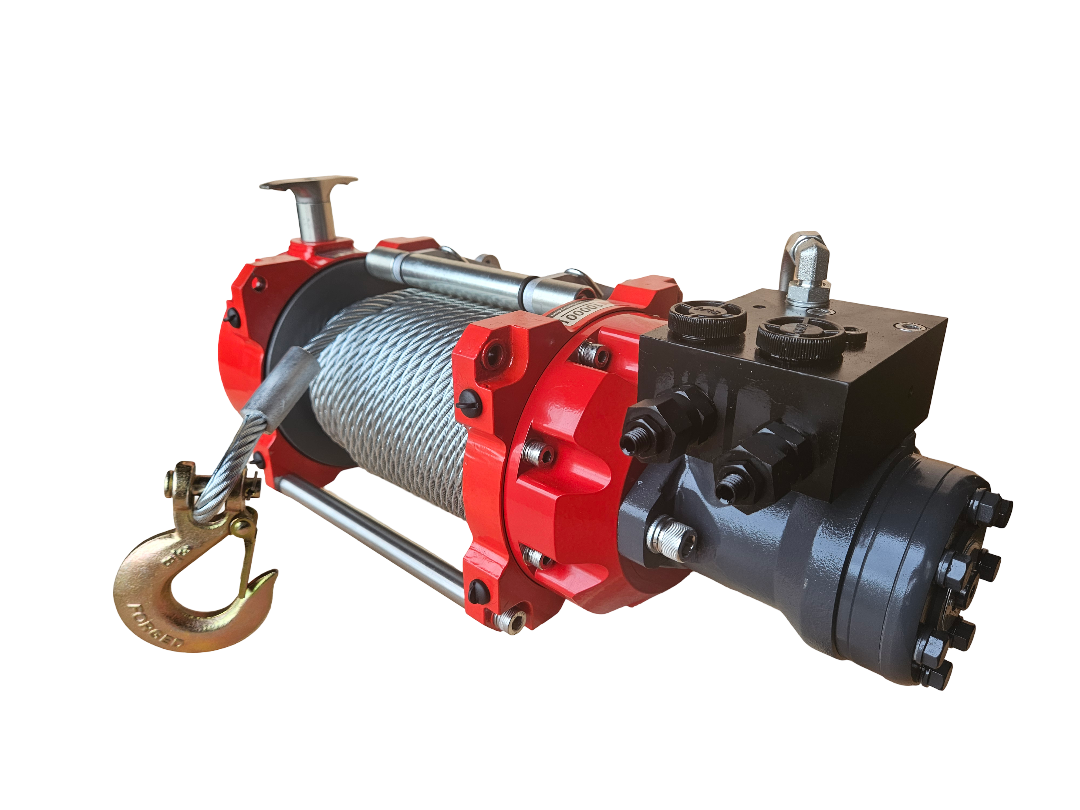

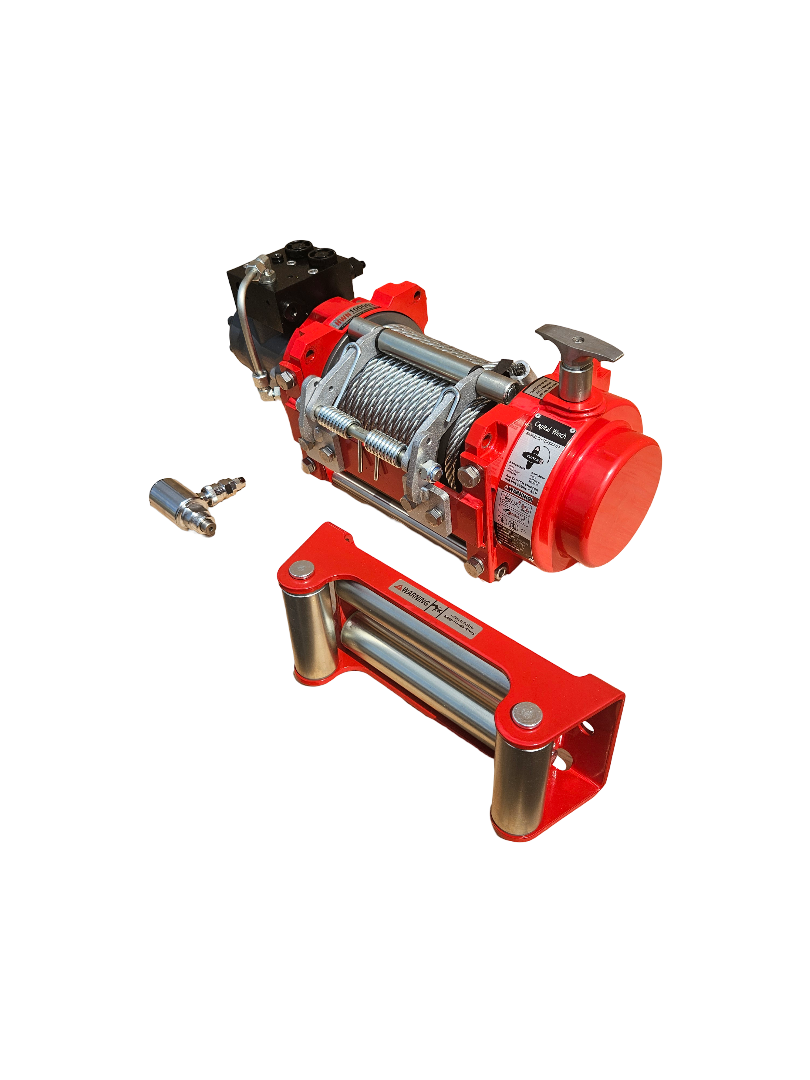

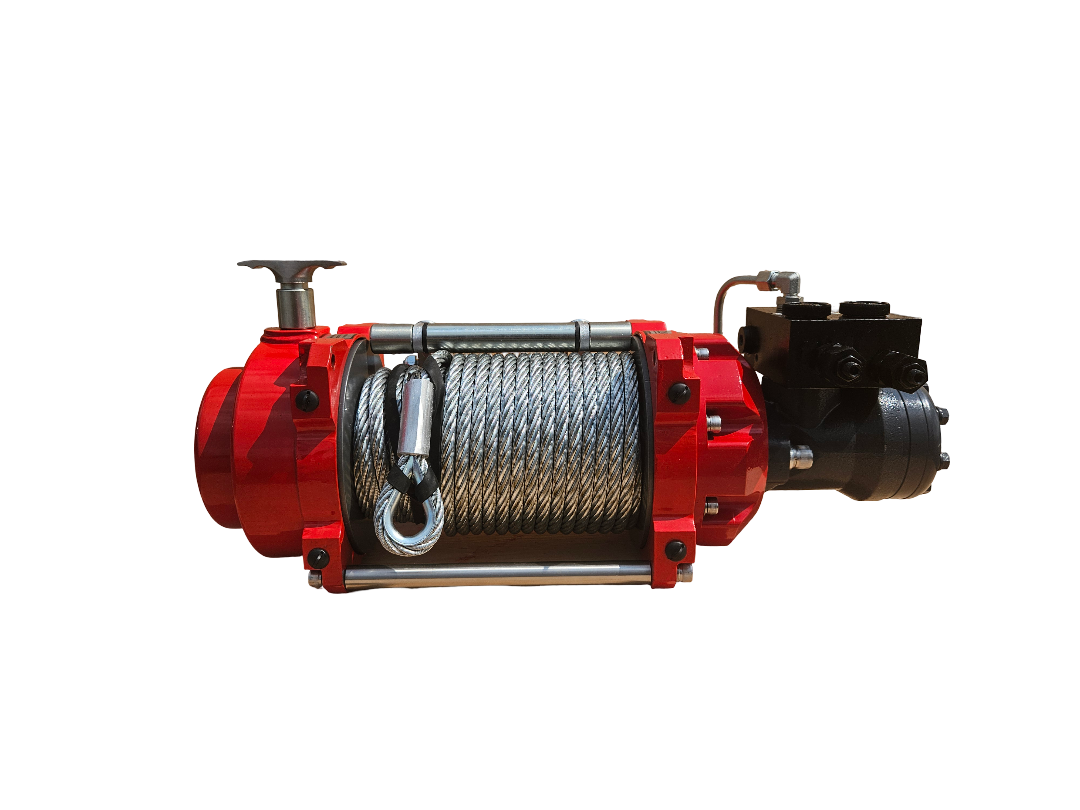

Warrior 10000NW hydraulic winch

Warrior winches have the best value for money. Compact and robust.

There NW series for commercial/industrial use, tow truck, heavy machinery.

Characteristics

• Hydraulic brake with integrated safety
• Capacity at first layer: 10000 lbs.
• Capacity at last layer: 5711 lbs.
• Vitesse: 37 ppm
• Manual drum disengagement (freespool), air option #ATC002
• Maximum oil flow: 16 gpm
• Maximum hydraulic pressure: 2150 psi
• Hydraulic damper valve
• Cable pressure roller
• Meets SAE-J706 standard
• Ratio D/d = 10
• Weight: 143 lbs.
• Power: 20hp
• 2:1 safety factor on the cable
• Cable with hook included, diameter 10mm x 87'

To download the brochure, click here

To download the operation manual, click here

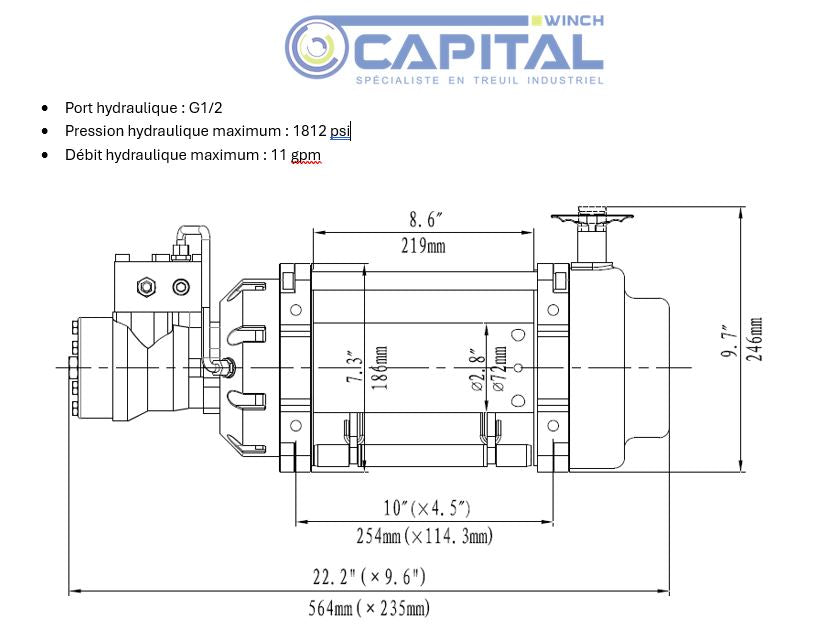

To download the drawing, click here
